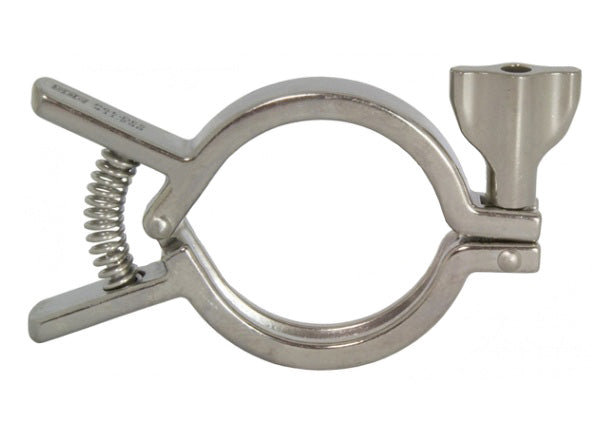

13IL-Q200 Dixon Valve I-line/Q-line Squeeze Clamp - 2" - 304 Stainless Steel

13IL-Q200 Dixon Valve I-line/Q-line Squeeze Clamp - 2" - 304 Stainless Steel

Save $33.81 Save $33.81
$84.53
$84.53 - $84.53
$84.53
$50.72
$50.72 - $50.72
$50.72

Dixon Sanitary Fittings I-line/Q-line Squeeze Clamp
Specifications for Variant SKU: 13IL-Q200 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 2
Notes:
  • Wing nut tightened to 25 in. lbs. of torque
  • Tests are done hydrostatically with no water hammer or shock loads.
  • All ratings shown are dependent upon related components within the system and proper installation.
Material:
  • 304 Stainless Steel
Part Number Tube OD Pressure Rating
13IL-Q100150 1"- 1-1/2" 700 PSI at 70°F
250 PSI at 250°F
13IL-Q200 2" 450 PSI at 70°F
250 PSI at 250°F
