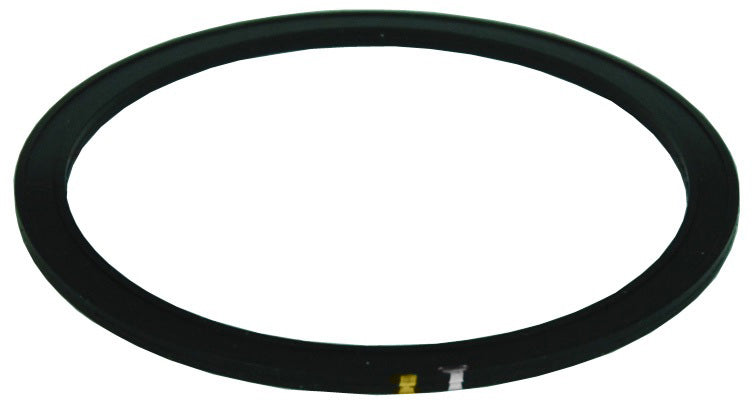

40IV200 Dixon Valve 2" Sanitary FKM I-Line Gasket - Black
40IV200 Dixon 2" Sanitary FKM I-Line Gasket - Black
40IV200 Dixon 2" Sanitary FKM I-Line Gasket - Black

40IV200 Dixon Valve 2" Sanitary FKM I-Line Gasket - Black

Save $2.59 Save $2.59
$7.10
$7.10 - $7.10
$7.10
$4.51
$4.51 - $4.51
$4.51

Dixon Sanitary Fittings Sanitary I-Line Gaskets - FKM I-Line Gaskets
Specifications for Variant SKU: 40IV200 Dixon
Seal Material(s): Viton/FKM
Features:
  • Color code: One white dot, One yellow dot
  • Gasket Color: Black.
  • Meets 21CFR 177.1550.
  • Passed USP class VI cytotoxicity testing.
  • 1/16" thick.
  • Peroxide cured.
Part Number Tube OD Thickness Color Code Weight (Lbs.)
40IV100 1" 3/32" One white dot, One yellow dot 0.0050
40IV150 1-1/2" 3/32" One white dot, One yellow dot 0.0050
40IV200 2" 3/32" One white dot, One yellow dot 0.0050
40IV250 2-1/2" 3/32" One white dot, One yellow dot 0.0100
40IV300 3" 3/32" One white dot, One yellow dot 0.0150
40IV400 4" 3/32" One white dot, One yellow dot 0.0150
40IV600 6" 3/32" One white dot, One yellow dot 0.0450
40IV800 8" 3/32" One white dot, One yellow dot 0.5000

40IV20016 2" 1/16" One white dot, One yellow dot -
40IV30016 3" 1/16" One white dot, One yellow dot -
40IV60016 6" 1/16" One white dot, One yellow dot -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
