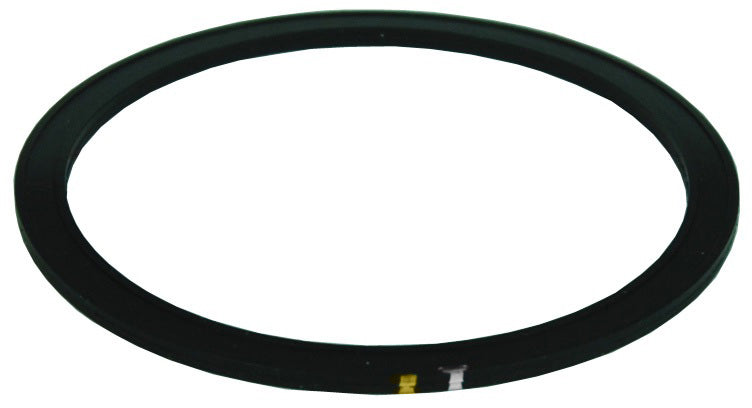

40IV100 Dixon Valve 1" Sanitary FKM I-Line Gasket - Black
40IV100 Dixon 1" Sanitary FKM I-Line Gasket - Black
40IV100 Dixon 1" Sanitary FKM I-Line Gasket - Black

40IV100 Dixon Valve 1" Sanitary FKM I-Line Gasket - Black

Save $3.22 Save $3.22
$8.01
$8.01 - $8.01
$8.01
$4.79
$4.79 - $4.79
$4.79

Dixon Sanitary Fittings Sanitary I-Line Gaskets - FKM I-Line Gaskets
Specifications for Variant SKU: 40IV100 Dixon
Seal Material(s): Viton/FKM
Features:
  • Color code: One white dot, One yellow dot
  • Gasket Color: Black.
  • Meets 21CFR 177.1550.
  • Passed USP class VI cytotoxicity testing.
  • 1/16" thick.
  • Peroxide cured.
Part Number Tube OD Thickness Color Code Weight (Lbs.)
40IV100 1" 3/32" One white dot, One yellow dot 0.0050
40IV150 1-1/2" 3/32" One white dot, One yellow dot 0.0050
40IV200 2" 3/32" One white dot, One yellow dot 0.0050
40IV250 2-1/2" 3/32" One white dot, One yellow dot 0.0100
40IV300 3" 3/32" One white dot, One yellow dot 0.0150
40IV400 4" 3/32" One white dot, One yellow dot 0.0150
40IV600 6" 3/32" One white dot, One yellow dot 0.0450
40IV800 8" 3/32" One white dot, One yellow dot 0.5000

40IV20016 2" 1/16" One white dot, One yellow dot -
40IV30016 3" 1/16" One white dot, One yellow dot -
40IV60016 6" 1/16" One white dot, One yellow dot -
