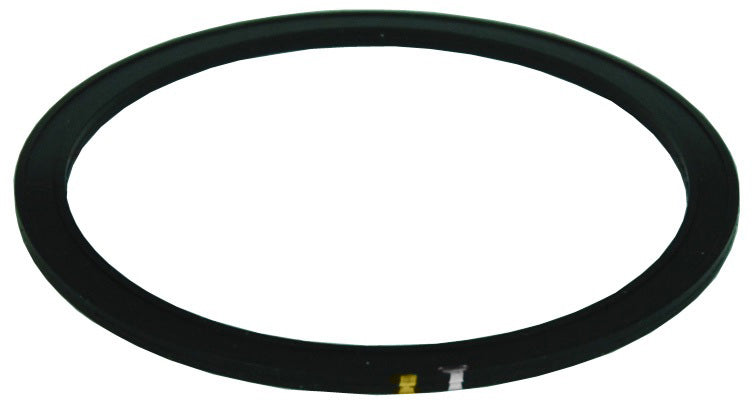

40IV60016 Dixon Valve 6" Sanitary FKM I-Line Gasket (1/16" Thickness) - Black

Save $7.26 Save $7.26
Original price $65.33
Original price $65.33 - Original price $65.33
Original price $65.33
Current price $58.07
$58.07 - $58.07
Current price $58.07

Dixon Sanitary Fittings Sanitary I-Line Gaskets - FKM I-Line Gaskets

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 40IV60016 Dixon
Seal Material(s): Viton/FKM
Features:
  • Color code: One white dot, One yellow dot
  • Gasket Color: Black.
  • Meets 21CFR 177.1550.
  • Passed USP class VI cytotoxicity testing.
  • 1/16" thick.
  • Peroxide cured.
Part Number Tube OD Thickness Color Code Weight (Lbs.)
40IV100 1" 3/32" One white dot, One yellow dot 0.0050
40IV150 1-1/2" 3/32" One white dot, One yellow dot 0.0050
40IV200 2" 3/32" One white dot, One yellow dot 0.0050
40IV250 2-1/2" 3/32" One white dot, One yellow dot 0.0100
40IV300 3" 3/32" One white dot, One yellow dot 0.0150
40IV400 4" 3/32" One white dot, One yellow dot 0.0150
40IV600 6" 3/32" One white dot, One yellow dot 0.0450
40IV800 8" 3/32" One white dot, One yellow dot 0.5000
40IV20016 2" 1/16" One white dot, One yellow dot -
40IV30016 3" 1/16" One white dot, One yellow dot -
40IV60016 6" 1/16" One white dot, One yellow dot -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
