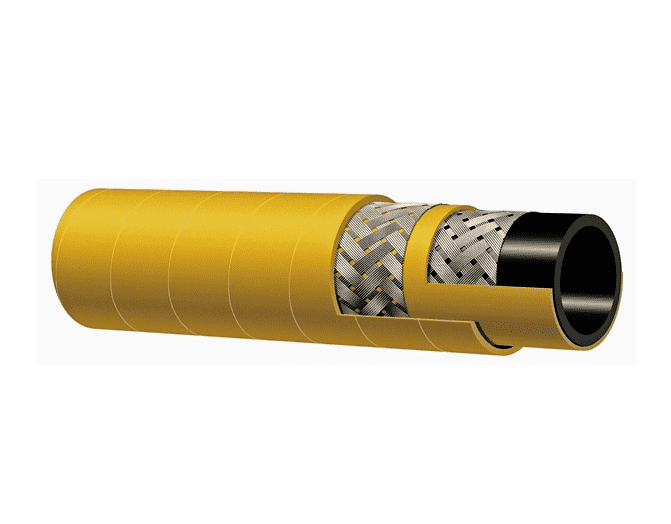

T142AK250X100 Kuriyama Alfagomma High Temperature - Oil Resistant Steel Braided Reinforced Air Hose - Yellow - 2-1/2 " ID - 3.03" OD - 450 PSI - 100ft

T142AK250X100 Alfagomma by Kuriyama | High Temperature | Oil Resistant Braided Air Hose | Yellow | 2-1/2 " ID | 3.03" OD | 450 PSI | Reinforced Steel | 100ft Length

Save $909.04 Save $909.04
$3,181.63
$3,181.63 - $3,181.63
$3,181.63
$2,272.59
$2,272.59 - $2,272.59
$2,272.59



Kuriyama Alfagomma® T142AK Series 600 PSI High Temperature Oil Resistant Steel Braided Reinforced Air Hose - Yellow

Package Quantity: 100 FT

Specifications for Variant SKU: T142AK250X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T142AK Series
Hose Color(s): Yellow
Internal Diameter: 2.50in
Outer Diameter: 3.03in
Tubing Construction: Nitrile
Cover Construction: SBR/Nitrile Blend
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: High pressure air for mines and quarries. Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required. SAE Rating: N/A
Other Ratings: N/A Tube: Black Extruded NBR (RMA Class A) - oil mist resistant.
Reinforcement: High tensile steel wire braids. Cover: Yellow SBR/NBR - abrasion, ozone, hydrocarbon and flame resistant - pin pricked.
Temperature Range: -40 deg. F (-40 deg. C) to 242 deg. F (+120 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY T142 HIGH TEMP STEEL AIR - OIL RESISTANT (embossed)
  • Coupling Suggestions: Steel or malleable iron male insert NPT, female ground joint or washer type with spud, or universal quick-acting couplings attached with 2 or 4 bolt interlocking clamps or bands.
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Min. Bend Radius at 68 deg. F Standard Length Weight
(in.) (mm) (in.) (mm) PSI (in.) (ft.) (lbs./ft.)
T142AK200X100 2" 51mm 2.52" 64mm 600 PSI 10" 100ft 1.53 lbs
T142AK200X50 2" 51mm 2.52" 64mm 600 PSI 10" 50ft 1.53 lbs
T142AK250X100 2-1/2" 63mm 3.03" 77mm 450 PSI 12-1/2" 100ft 1.93 lbs
T142AK300X100 3" 76mm 3.54" 90mm 450 PSI 15" 100ft 2.38 lbs
T142AK300X50 3" 76mm 3.54" 90mm 450 PSI 15" 50ft 2.38 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
