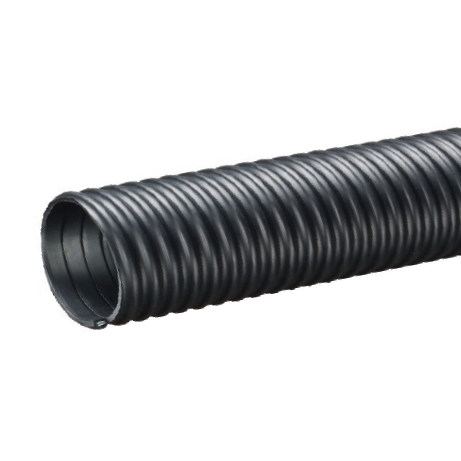

TR1-250X100 Kuriyama Tigerflex TR1 Series Heavy Duty SBR Wet or Dry Material Handling Hose - 2-1/2" - 100ft

TR1-250X100 Tigerflex by Kuriyama | TR1 Series | Heavy Duty Wet or Dry Material Handling Hose | 2-1/2" ID | SBR | 100ft Length

Save $335.76

$1,175.16

$1,175.16 - $1,175.16

$1,175.16

$839.40

$839.40 - $839.40

$839.40

Kuriyama Tigerflex TR1™ Series Heavy Duty SBR Wet or Dry Material Handling Hose

Package Quantity: 100 FT

Specifications for Variant SKU: TR1-250X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	TR1 Series
Hose Color(s):	Black
Internal Diameter:	2.50in
Outer Diameter:	3.05in
Tubing Construction:	SBR
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Conductive Tube, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Fly ash collection, Hydro excavation, Industrial vacuum equipment, Material handling - heavy duty abrasive, Milling machine scrap recovery, Rock, gravel, sand and crushed concrete vacuuming, Sewer truck boom hose, Shot blast recovery, Slurry handling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	SBR Rubber
Reinforcement:	Rigid PVC Helix.	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Superior Rubber Compounds - Tigerflex™ uses specially engineered compounds which provide the ideal combination of excellent abrasion resistance, light weight, flexibility, static dissipation and superior long-lasting durability. Static Dissipative Tube - Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Convoluted Outer Cover - Provides increased hose flexibility.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
TR1-150X100	1-1/2"	38.1mm	TBD	TBD	TBD	TBD	TBD	TBD	TBD	100ft	TBD
TR1-200X100	2"	50.8mm	2.38"	60.5mm	32 PSI	23 PSI	Full	26 in. Hg	1.5"	100ft	0.50 lbs
TR1-200X50	2"	50.8mm	2.38"	60.5mm	32 PSI	23 PSI	Full	26 in. Hg	1.5"	100ft	0.50 lbs
TR1-250X100	2-1/2"	63.4mm	3.05"	77.5mm	30 PSI	22 PSI	Full	26 in. Hg	2.0"	100ft	0.84 lbs
TR1-250X50	2-1/2"	63.4mm	3.05"	77.5mm	30 PSI	22 PSI	Full	26 in. Hg	2.0"	50ft	0.84 lbs
TR1-300X100	3"	76.2mm	3.56"	90.5mm	28 PSI	20 PSI	Full	26 in. Hg	2.5"	100ft	1.00 lbs
TR1-300X50	3"	76.2mm	3.56"	90.5mm	28 PSI	20 PSI	Full	26 in. Hg	2.5"	50ft	1.00 lbs
TR1-400X100	4"	101.6mm	4.67"	118.5mm	26 PSI	18 PSI	Full	26 in. Hg	4.5"	100ft	1.70 lbs
TR1-400X50	4"	101.6mm	4.67"	118.5mm	26 PSI	18 PSI	Full	26 in. Hg	4.5"	50ft	1.70 lbs
TR1-500X100	5"	126.8mm	5.73"	145.5mm	21 PSI	16 PSI	28 in. Hg	24 in. Hg	5.0"	100ft	2.38 lbs
TR1-500X50	5"	126.8mm	5.73"	145.5mm	21 PSI	16 PSI	28 in. Hg	24 in. Hg	5.0"	50ft	2.38 lbs
TR1-600X100	6"	153.4mm	6.88"	174.8mm	19 PSI	13 PSI	28 in. Hg	24 in. Hg	9.5"	100ft	3.20 lbs
TR1-600X50	6"	153.4mm	6.88"	174.8mm	19 PSI	13 PSI	28 in. Hg	24 in. Hg	9.5"	50ft	3.20 lbs
TR1-600X20	6"	153.4mm	6.88"	174.8mm	19 PSI	13 PSI	28 in. Hg	24 in. Hg	9.5"	20ft	3.20 lbs
TR1-800X50	8"	204.8mm	9.18"	233.2mm	19 PSI	13 PSI	27 in. Hg	23 in. Hg	14"	50ft	5.70 lbs
TR1-800X20	8"	204.8mm	9.18"	233.2mm	19 PSI	13 PSI	27 in. Hg	23 in. Hg	14"	20ft	5.70 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. Not for liquid handling use. *Actual service temperature range is application dependent. Available with grounding wire upon request. Minimum order required, contact customer service for details.
