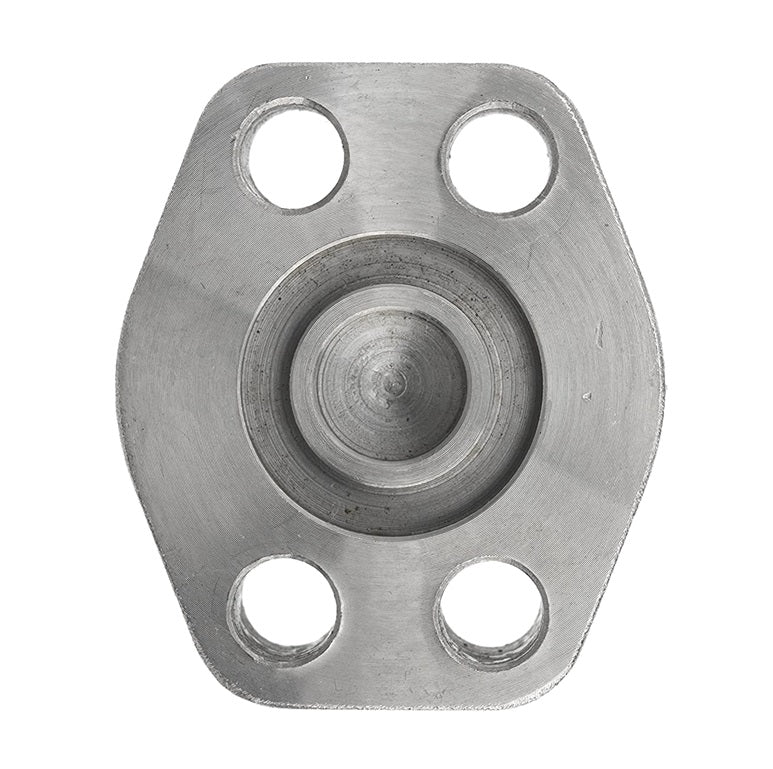

1942-61-24-K by Brennan Inc. | -24 O-Ring Face Flange Pad Plug | Code 61 with Bolt Kit | Steel

1942-61-24-K by Brennan Inc. | -24 O-Ring Face Flange Pad Plug | Code 61 with Bolt Kit | Steel

$34.53 - $34.53
$34.53
$43.81
$43.81 - $43.81
$43.81

Brennan Inc.
Flange Fittings: 1942-61-K - O-Ring Face Flange Pad Plug (Code 61) with Bolt Kit
Specifications for Variant SKU: 1942-61-24-K Brennan
Ends Configuration: 1-1/2in Code 61 Flange
Material(s): Steel
Part Number Material Flange Size A B C D E J Min. J Max. K1 Drill K2 Thread
1942-61-08-K Steel 1/2" 1.813" 2.125" 0.688" 1.500" 0.750" 1.000" 1.005" 0.344" 5/16-18"
1942-61-12-K Steel 3/4" 2.063" 2.563" 0.875" 1.875" 0.750" 1.250" 1.255" 0.406" 3/8-16"
1942-61-16-K Steel 1" 2.313" 2.750" 1.031" 2.063" 0.880" 1.560" 1.565" 0.406" 3/8-16"
1942-61-20-K Steel 1-1/4" 2.875" 3.125" 1.188" 2.313" 0.940" 1.750" 1.755" 0.469" 7/16-14"
1942-61-24-K Steel 1-1/2" 3.250" 3.688" 1.406" 2.750" 1.190" 2.115" 2.125" 0.531" 1/2-13"
1942-61-32-K Steel 2" 3.813" 4.000" 1.688" 3.063" 1.440" 2.490" 2.500" 0.531" 1/2-13"
1942-61-40-K Steel 2-1/2" 4.281" 4.500" 2.000" 3.500" 1.820" 2.995" 3.005" 0.531" 1/2-13"
1942-61-48-K Steel 3" 5.156" 5.313" 2.438" 4.188" 2.190" 3.615" 3.625" 0.656" 5/8-11"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
