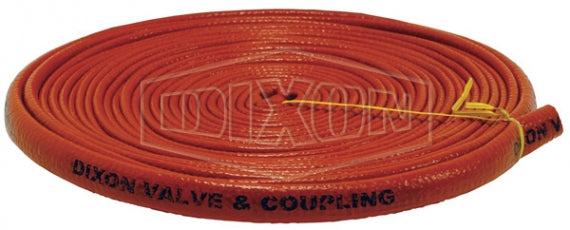

1610-10 by Dixon Valve | Fire Jacket for Hose | 5/8" Nominal ID | 50ft

1610-10 by Dixon Valve | Fire Jacket for Hose | 5/8" Nominal ID | 50ft

Save $22.87 Save $22.87
$205.80
$205.80 - $205.80
$205.80
$182.93
$182.93 - $182.93
$182.93

Dixon Valve & Coupling
Maintenance and Repair | Fire Jacket for Hose

Used to protect hose and hose assemblies, tubing, piping, wiring, and cables from high temperatures, direct flame, or molten splash.
Specifications for Variant SKU: 1610-10 Dixon
Features:
  • Helps maintain line temperature and reduce environmental overheating and overcooling.
  • Sleeving slides easily over hose and expands to go over fittings.
  • Resistant to hydraulic fluids and lubricating oil.
  • Iron oxide red color.
  • Made in USA.
Fire Jacket Tape:
  • FTH100: Used to seal the ends of fire jackets to prevent fraying and fluid wicking.
Material:
  • Compounded silicone rubber coating over fiberglass.
Specification:
  • Temperature range: -65°F to 500°F (-54°C to 260°C).
Approvals:
  • Completely non-asbestos, REACH - ROHS compliant.
  • Meets flammability requirements of UL 94 HB and UL 94 V-0.
Part Number Nominal ID Length
0610-4 1/4" 50ft
1010-6 3/8" 50ft
1310-8 1/2" 50ft
1610-10 5/8" 50ft
1910-12 3/4" 50ft
2210-14 7/8" 50ft
2510-16 1" 50ft
3210-20 1-1/4" 50ft
3810-24 1-1/2" 50ft
4510-28 1-3/4" 50ft
5110-32 2" 50ft
6410-40 2-1/2" 50ft
7610-48 3" 50ft
10210-64 4" 50ft
