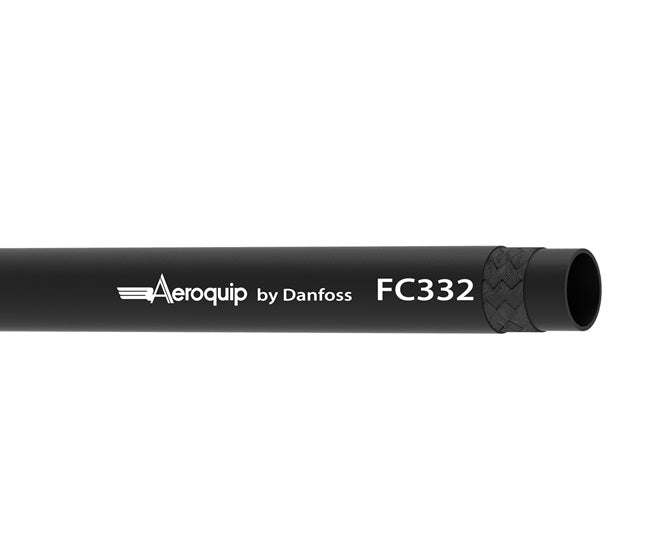

FC332-08 Aeroquip by Danfoss | AQP SOCKETLESS™ Textile Braid Hose (equal to FBV0800) | 0.50" ID

FC332-08 Aeroquip by Danfoss | AQP SOCKETLESS™ Textile Braid Hose (equal to FBV0800) | 0.50" ID

$9.23 - $923.40
$9.23
$9.23 - $923.40
$9.23

Aeroquip® by Danfoss
FC332 Series | AQP SOCKETLESS™ Textile Braid General Purpose Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: FC332-08 Danfoss
Brand: Aeroquip
Series: FC332 Series
Hose Color(s): Black
Dash Size: -08
Internal Diameter: 0.50in
Outer Diameter: 0.75in
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Hose Properties:
Application: For gasoline, diesel, fuel and lubricating oils, air and water.
Not recommended for hydraulic impulse applications and
not approved for air brake applications.		 SAE Rating: N/A
Other Ratings: N/A Tube: AQP Elastomer
Reinforcement: Textile Braid Cover: AQP Elastomer
Temperature Range: -40°F to +302°F (-40°C to +150°C)
Water not to Exceed +180°F (+82°C)
Air not to Exceed +250°F (+121°C)
Part Number Hose ID Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Vacuum Service Weight
DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft
FC332-04 6 6,4mm 0.25" 12,4mm 0.49" 20,0 bar 300 psi 82,0 bar 1200 psi 76,2mm 3.00" 94,8 kPa 28 in/Hg 0,12 kg/m 0.08 lbs/ft
FC332-06 10 9,7mm 0.38" 16,0mm 0.63" 20,0 bar 300 psi 82,0 bar 1200 psi 76,2mm 3.00" 94,8 kPa 28 in/Hg 0,18 kg/m 0.12 lbs/ft
FC332-08 13 12,7mm 0.50" 19,1mm 0.75" 20,0 bar 300 psi 82,0 bar 1200 psi 127,0mm 5.00" 94,8 kPa 28 in/Hg 0,22 kg/m 0.15 lbs/ft
FC332-10 16 16,0mm 0.63" 23,1mm 0.91" 20,0 bar 300 psi 82,0 bar 1200 psi 152,4mm 6.00" 60,9 kPa 18 in/Hg 0,30 kg/m 0.20 lbs/ft
FC332-12 19 19,1mm 0.75" 26,4mm 1.04" 20,0 bar 300 psi 82,0 bar 1200 psi 177,8mm 7.00" 60,9 kPa 18 in/Hg 0,42 kg/m 0.28 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
