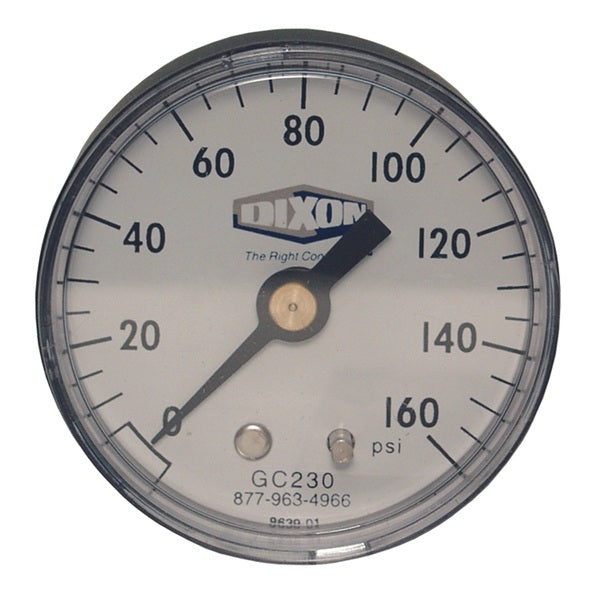

GC230 by Dixon Valve | Standard Dry Gauge | Center Back Mount | 2" Face | 1/4" Center Back Mount | 0-160 PSI Range | ABS Plastic

$15.21 - $15.21

$15.21

$20.19

$20.19 - $20.19

$20.19

Dixon Valve
Dixon® Gauge | Standard Dry Gauge | Center Back Mount

All of the gauges supplied by Dixon are designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools, and many other installations where it is necessary to have a gauge with a non-corrosive movement.

Quantity

Specifications for Variant SKU: GC230 Dixon
Series:	GC Series

Features:
ASME B40.1, Grade B (± 3-2-3% accuracy). PowerFlex™ movement with polyester segment, designed to resist the effects of shock, vibration and pulsation.
Materials:
ABS plastic case, corrosion resistant. Polycarbonate window. Black aluminum pointer.
Specifications:
C-shaped bronze safety bourdon tube (600 PSI and lower) Helical wound bronze safety bourdon tube (1000 PSI and higher) Ambient temperature range: -40°F to 150°F (-40°C to 66°C)
Term Meanings:
Figure Interval: Figure Interval (Increments between PSI numbers on gauge face). Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).

1-1/2" Face 1/8" Center Back Mount Part Number	2" Face 1/4" Center Back Mount Part Number	PSI Range	Figure Interval	Minor Gradient
-	GC200	0-15	1	0.5
GC605	GC215	0-30	5	0.5
GC610	GC220	0-60	5	1
GC615	GC225	0-100	10	2
GC620	GC230	0-160	20	5
GC625	GC235	0-200	20	5
-	GC240	0-300	30	5
