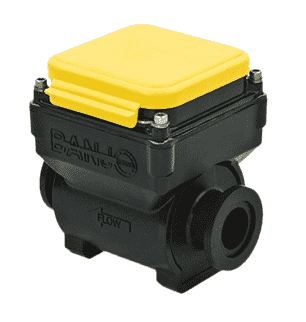

MFM100 Banjo Polypropylene Flow Meter - Full Port - 1" Flange End x 1" Flange End - 150 Max. PSI

MFM100 by Banjo | Manifold Flange Connections | Flow Meter | Full Port | 1" Flange End x 1" Flange End | GPM: 110 | 200 PSI | Polypropylene

Save $92.42 Save $92.42
$831.77
$831.77 - $831.77
$831.77
$739.35
$739.35 - $739.35
$739.35

Banjo Manifold Flange Connections - Flow Meters - Polypropylene

Specifications for Variant SKU: MFM100 Banjo
Applications:
  • Measures water and most conductive liquids (Will not read petroleum-based products)
  • Fluids
Features:
  • Displays overall total volume & batch total volume!
  • Flow rate allows for Gallons or Liters Per Minute
  • The display reads 6 digits for Rate, 8 digits for Total and 1 decimal place reading in tenths.
  • Magnetic style meter with stainless steel electrodes
  • Self calibrating meter
  • Easy to change six (6) AA batteries
  • No moving parts to fail during use
  • Glass-reinforced polypropylene
  • Temperature range from 0° to 150°
  • Accuracy is 99% from 2 to 110 GPM for 1"
  • Accuracy is 99% from 6 to 300 GPM for 2".
  • Accuracy is 99% from 14 to 670 GPM for 3".
  • Note: It is recommended to have at least 10x the diameter of straight pipe before and after the flow meter.
  • There are 3 photoeyes located on the face of the flowmeter
  • Note: The meters do not have push buttons, to activate you must hold your finger over the photoeye for 2-4 seconds. (See image below)
Manuals:


Part Number Description End Type GPM Max PSI
MFM100 Full Port 1" Flange End x 1" Flange End 200 PSI 110
MFM220 Full Port 2" Flange End x 2" Flange End 200 PSI 300
MFM300 Full Port 3" Flange End x 3" Flange End 200 PSI 670
_x0002_
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
