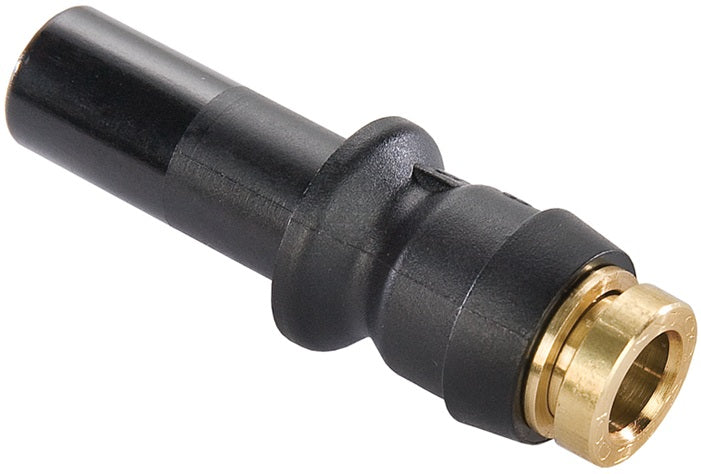

31665660DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Reducer | 1/4" Tube OD x 3/8" Tube OD | Composite/Brass

31665660DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Reducer | 1/4" Tube OD x 3/8" Tube OD | Composite/Brass

Save $3.15 Save $3.15
$7.87
$7.87 - $7.87
$7.87
$4.72
$4.72 - $4.72
$4.72

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Reducer | Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Specifications for Variant SKU: 31665660DOT Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 3/8in Tube Stub
Material(s): Plastic, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3.
Part Number Tube O.D. Tube O.D.
31665660DOT 1/4" 3/8"
