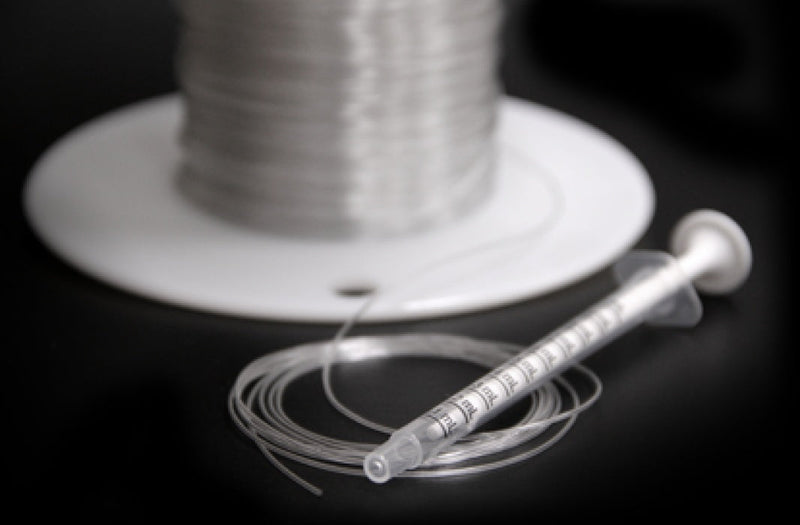

AAD04103 Tygon® by Saint Gobain | ND 100-80 | Non-DEHP Medical Device Tubing | .020 ID x .060 OD x .020" Wall | 500' Package Length

AAD04103 Tygon® by Saint Gobain | ND 100-80 | Non-DEHP Medical Device Tubing | .020 ID x .060 OD x .020" Wall | 500' Package Length

Save $65.17 Save $65.17
$228.09
$228.09 - $228.09
$228.09
$162.92
$162.92 - $162.92
$162.92

Saint Gobain
Tygon® ND 100-80 | Non-DEHP Medical Device Tubing

The characteristics and physical properties of Tygon ND 100-80 tubing make it an ideal choice for drug delivery, cannulas or protective sheaths, external drainage systems (e.g., cerebral spinal fluid drainage), diagnostic equipment (e.g., reagent manufacturing, waste transfer in IVD), and pressurized fluid transfer.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 500 FT

Specifications for Variant SKU: AAD04103 Saint Gobain
Brand: Tygon
Series: ND 100-80
Hose Color(s): White/Off-White
Internal Diameter: 0.02in
Outer Diameter: 0.06in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: REACH Compliant, USP - Class VI
Thermoplastic Tubing

Tygon® ND 100-80 | Non-DEHP Medical Device Tubing

Consistent with many medical tubing market requirements, Tygon ND 100-80 can be effectively bonded/welded using the following methods: heat, electronic (RF)/ultrasonic, solvent and adhesive. This thermoplastic tubing has a durometer rating of 80 Shore A, which is relatively high compared to other Tygon ND offerings. The higher durometer rating enables manufacturing at small diameters.

1

What is this product used for?
  • Cannulas or protective sheaths
  • Diagnostic equipment
  • Drug delivery
  • External drainage system
  • Pressurized fluid transfer
2

What are the key specifications?
Tube

Thermoplastic Material

Cover

Thermoplastic Material

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp. °F (°C)

185°F (85°C)

Brittleness By Impact Temp. °F (°C)

-31°F (-35°C)

Specifications

Meets the requirements of Biological Test for Plastics Class VI, as described in USP <88> (2017, fluid path). REACH compliant.

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Clear for easy visualization of fluid flow.
  • Kink resistant.
  • High pressure and vacuum resistance.
  • USP <88>, Class VI.
  • Regular evaluations to ensure REACH compliance.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Needle
Gauge		 Length
AAD04091 .010" .030" .010" 30 500ft
AAD04103 .020" .060" .020" 23 500ft
AAD04119 .030" .090" .030" 20-21 500ft
AAD04127 .040" .070" .010" 18-20 500ft
AAD04133 .050" .090" .020" 17-18 500ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® ND 100-80 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
