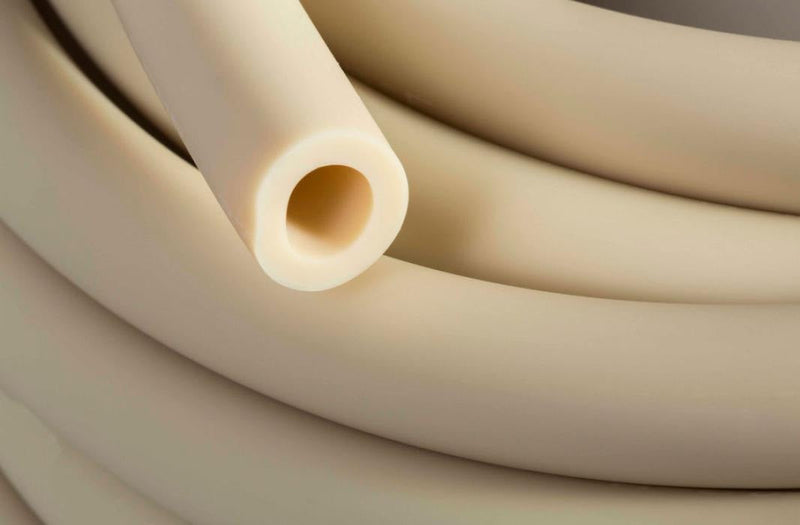

AAL00029 Tygon® by Saint Gobain | A-60-F | Food & Beverage Process Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length

AAL00029 Tygon® by Saint Gobain | A-60-F | Food & Beverage Process Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length

Save $76.20 Save $76.20
$266.69
$266.69 - $266.69
$266.69
$190.49
$190.49 - $190.49
$190.49

Saint Gobain
Tygon® A-60-F | Food & Beverage Process Tubing

Tygon® A-60-F tubing from Saint-Gobain is specially designed for peristaltic pumps used in dispensing equipment. It is extremely flexible, resists kinks, retains its shape, and can be easily installed, making it the best choice for demanding food and beverage pumping applications.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AAL00029 Saint Gobain
Brand: Tygon
Series: A-60-F
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: Thermoplastic Rubber
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, FDA 21 CFR Part 177.2600, NSF 51
Thermoplastic Elastomer Flexible Tubing

Tygon® A-60-F | Food & Beverage Process Tubing

This high-performance tubing can withstand extreme temperatures from -75°F to 275°F without cracking or deteriorating, and is robust enough for clean-in-place and steam-in-place cleaning and sterilization systems. Tygon A-60-F is compatible with virtually all commercial cleaners and sanitizers, and can be repeatedly autoclaved for up to five cycles without affecting its overall service life.

1

What is this product used for?
  • Food and beverage dispensing
2

What are the key specifications?
Tube

Thermoplastic Elastomer

Cover

Thermoplastic Elastomer

Reinforcement

None

Colors

Cream

Maximum Recommended Operating Temp. °F (°C)

275°F (135°C)

Brittleness By Impact Temp. °F (°C)

-75°F (-60°C)

Specifications

FDA 21 CFR, 177.2600 criteria
NSF®-51
3-A

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Long flex life in peristaltic pumps.
  • Temperature resistant from -75°F to 275°F.
  • Ozone and UV light resistant.
  • Repeatedly autoclavable.
  • Chemically compatible with a wide range of cleaners.
  • Compatible with virtually all common sanitizers and cleaners.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Bend
Radius
(in.)		 Max. Working
Pressure
at 73 deg. F
(PSI)		 Max. Working
Pressure
at 180 deg. F
(PSI)		 Vacuum Rating
at 73 deg. F
(in. Hg)		 Vacuum Rating
at 180 deg. F
(in. Hg)		 Length
AAL00003 1/16" 3/16" 1/16" 1/4" 34 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AAL00007 1/8" 1/4" 1/16" 1/2" 19 PSI 12 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AAL00012 3/16" 5/16" 1/16" 3/4" 13 PSI 8 PSI 29.9 in. Hg 23.0 in. Hg 50ft
AAL00017 1/4" 3/8" 1/16" 1-1/4" 10 PSI 6 PSI 26.0 in. Hg 13.0 in. Hg 50ft
AAL00019 1/4" 1/2" 1/8" 3/4" 19 PSI 12 PSI 29.9 in. Hg 29.9 in. Hg 50ft
AAL00022 5/16" 7/16" 1/16" 1-1/2" 8 PSI 5 PSI 17.0 in. Hg 8.0 in. Hg 50ft
AAL00027 3/8" 1/2" 1/16" 2-1/4" 7 PSI 4 PSI 11.0 in. Hg 5.0 in. Hg 50ft
AAL00029 3/8" 5/8" 1/8" 1-1/4" 13 PSI 8 PSI 29.9 in. Hg 23.0 in. Hg 50ft
AAL00046 5/8" 7/8" 1/8" 3-1/4" 8 PSI 5 PSI 17.0 in. Hg 8.0 in. Hg 50ft
AAL00053 3/4" 1" 1/8" 4" 7 PSI 4 PSI 11.0 in. Hg 5.0 in. Hg 50ft
AAL00038 1/2" 3/4" 1/8" 2" 10 PSI 6 PSI 26.0 in. Hg 13.0 in. Hg 50ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® A-60-F Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
