ABH02007 Versilon™ by Saint Gobain | C-219-A | Flexible PVC Chemical Transfer Tubing | 1/8" ID x 1/4" OD x 1/16" Wall | 100' Package Length

ABH02007 Versilon™ by Saint Gobain | C-219-A | Flexible PVC Chemical Transfer Tubing | 1/8" ID x 1/4" OD x 1/16" Wall | 100' Package Length

Save $5.15 Save $5.15
$18.03
$18.03 - $18.03
$18.03
$12.88
$12.88 - $12.88
$12.88

Saint Gobain

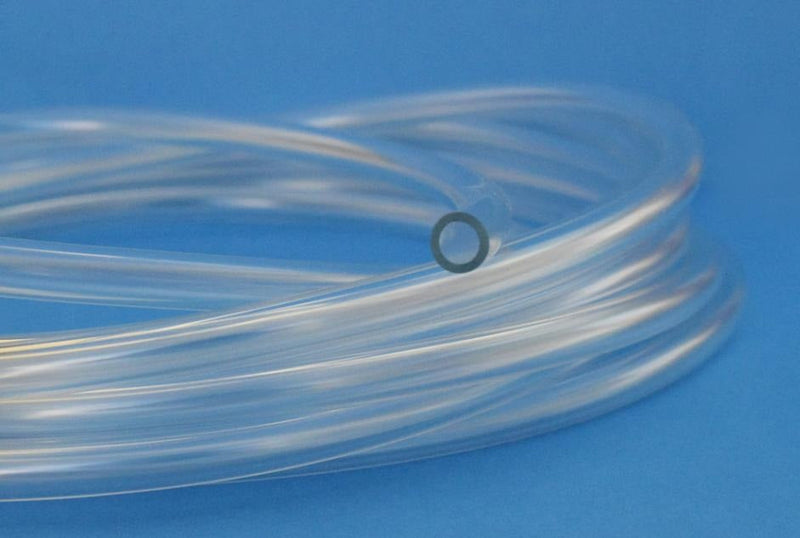

Versilon™ C-219-A | Flexible PVC Chemical Transfer Tubing

Versilon® C-219-A tubing from Saint-Gobain offers clarity, outstanding flex life, and broad chemical resistance. It is ideal for numerous fluid handling applications and soap transfer systems. This tubing utilizes a Non-DEHP plasticizer and is both REACH and ROHS compliant. Additionally, this product offers a long service life and accommodates a variety conditions such as abrupt corners or other obstructions.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: ABH02007 Saint Gobain
Brand: Versilon
Series: C-219-A
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.25in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable USDA Standards, USP - Class VI
Flexible Chemical Transfer Tubing

Versilon® C-219-A

Versilon® C-219-A tubing from Saint-Gobain offers clarity, outstanding flex life, and broad chemical resistance. It is ideal for numerous fluid handling applications and soap transfer systems. This tubing utilizes a Non-DEHP plasticizer and is both REACH and ROHS compliant. Additionally, this product offers a long service life and accommodates a variety conditions such as abrupt corners or other obstructions.

1

What is this product used for?
  • Soap and detergent transfer
2

What are the key specifications?
Tube

PVC

Cover

PVC

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp °C (°F)

74°C (165°F)

Low Temp Flexibility °C (°F)

-43°C (-45°F)

Specifications

REACH and ROHS compliant

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Long service life - non-aging, non-oxidizing.
  • Smooth inner wall resists build-up.
  • Soft and flexible - easy to slip over fittings.
  • Tight bend radius.
  • Outstanding flex life.
  • Broad chemical resistance.
  • Contains no BPA or phthalates.
4

Which sizes or configurations are available?
Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Max. Operating Pressure at 73 deg. F (PSI)
ABH02002 1/16" 1/8" 1/32" 48 PSI
ABH02007 1/8" 1/4" 1/16" 50 PSI
ABH02012 3/16" 5/16" 1/16" 50 PSI
ABH02013 3/16" 3/8" 3/32" N/A
ABH02014 3/16" 7/16" 1/8" N/A
ABH02017 1/4" 3/8" 1/16" 30 PSI
ABH02018 1/4" 7/16" 3/32" 40 PSI
ABH02019 1/4" 1/2" 1/8" 46 PSI
ABH02022 5/16" 7/16" 1/16" 28 PSI
ABH02023 5/16" 1/2" 3/32" N/A
ABH02027 3/8" 1/2" 1/16" 22 PSI
ABH02028 3/8" 9/16" 3/32" 32 PSI
ABH02029 3/8" 5/8" 1/8" 46 PSI
ABH02032 7/16" 9/16" 1/16" N/A
ABH02033 7/16" 5/8" 3/32" N/A
ABH02036 1/2" 5/8" 1/16" 20 PSI
ABH02037 1/2" 11/16" 3/32" 26 PSI
ABH02038 1/2" 3/4" 1/8" 30 PSI
ABH02039 1/2" 131/16" 5/32" N/A
ABH02041 9/16" 3/4" 3/32" N/A
ABH02045 5/8" 13/16" 3/32" N/A
ABH02046 5/8" 7/8" 1/8" 26 PSI
ABH02053 3/4" 1" 1/8" 22 PSI
ABH02054 3/4" 1-1/16" 5/32" N/A
ABH02059 7/8" 1-1/8" 1/8" N/A
ABH00062 1" 1-1/4" 1/8" 18 PSI
ABH00064 1" 1-3/8" 3/16" 26 PSI
ABH00065 1" 1-1/2" 1/4" 34 PSI
ABH00070 1-1/4" 1-5/8" 3/16" 22 PSI
ABH00071 1-1/4" 1-3/4" 1/4" N/A
ABH00073 1-1/2" 1-7/8" 3/16" N/A
ABH00074 1-1/2" 2" 1/4" 24 PSI
ABH00076 1-3/4" 2-1/4" 1/4" N/A

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Versilon™ C-219-A Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
