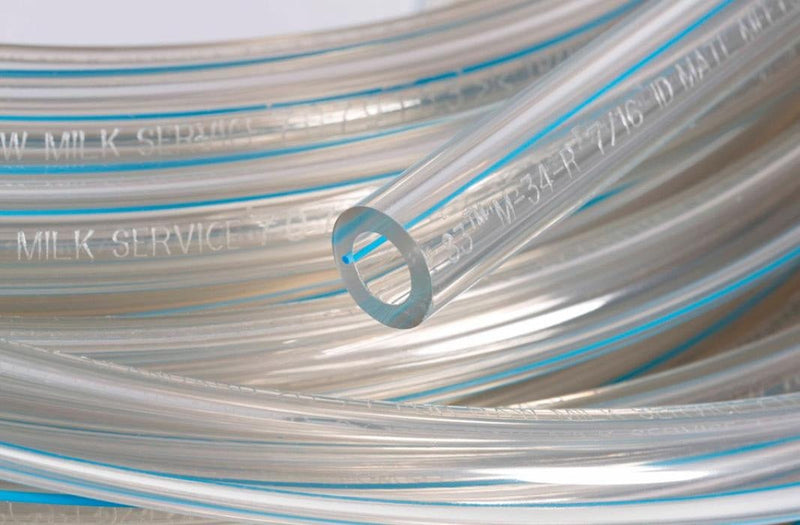

ACK02048 Tygon® by Saint Gobain | M-34-R | Raw Milk Tubing | 5/8" ID x 1" OD x 3/16" Wall | 100' Package Length

ACK02048 Tygon® by Saint Gobain | M-34-R | Raw Milk Tubing | 5/8" ID x 1" OD x 3/16" Wall | 100' Package Length

Minimum Order Quantity: 32 Boxes

Save $94.41 Save $94.41
$249.13
$249.13 - $249.13
$249.13
$154.72
$154.72 - $154.72
$154.72

Saint Gobain
Tygon® M-34-R | Raw Milk Tubing

A long-lasting tubing that is extremely flexible and installs quickly and easily around stanchions and milk handling equipment.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: ACK02048 Saint Gobain
Brand: Tygon S3
Series: M-34-R
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.625in
Outer Diameter: 1in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements
Thermoplastic Elastomer Flexible Tubing

Tygon® M-34-R | Raw Milk Tubing

Tygon® M-34-R tubing from Saint-Gobain is phthalate-free and specially formulated to lower the risks associated with rubber tubing, including embrittlement and cracking from oxidation, that often shorten the service life of the tubing. Its smooth, non-porous inner surface reduces buildup from butterfat, milkstones, and milksoil, which helps minimize bacterial growth within milk transport lines. This high-performance tubing is crystal clear, which allows you to visually inspect the lines and verify cleanliness. It is also extremely flexible and installs easily, making it ideal for use around stanchions and milk handling equipment.

1

What is this product used for?
  • Raw milk transfer
  • Milk transport lines
  • Bulk milk transfer
2

What are the key specifications?
Tube

Smooth, Nonporous

Cover

N/A

Reinforcement

None

Colors

Clear with embedded blue stripe

Maximum Recommended Operating Temp. °F (°C)

165°F (74°C)

Brittleness by Impact Temp. °F (°C)

-33°F (-36°C)

Specifications

Complies with applicable FDA Food Additive Regulations
3-A certified

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Crystal clarity permits visual inspection of milk flow.
  • Smooth, non-porous bore resists build-up.
  • Lightweight and flexible for quick installation.
  • Non-wetting properties allow easy cleaning and complete drainage.
  • Durability for long and reliable service.
  • Contains no BPA or phthalates.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min. Bend
Radius
(in.)		 Max. Working
Pressure
at 73 deg. F
(PSI)		 Vacuum
Rating
at 73 deg. F
(in. Hg)		 Length
ACK02035 7/16" 3/4" 5/32" 1-1/8" 45 PSI 29.9 in. Hg 100ft
ACK02039 1/2" 13/16" 5/32" 1-1/2" 40 PSI 29.9 in. Hg 100ft
ACK02043 9/16" 5/16" 3/16" 1-1/2" 43 PSI 29.9 in. Hg 100ft
ACK04043 9/16" 15/16" 3/16" 1-1/2" 43 PSI 29.9 in. Hg 500ft
ACK02048 5/8" 1" 3/16" 1-3/4" 40 PSI 29.9 in. Hg 100ft
ACK04048 5/8" 1" 3/16" 1-3/4" 40 PSI 29.9 in. Hg 500ft
ACK02056 3/4" 1-5/32" 13/64" 2-1/4" 36 PSI 29.9 in. Hg 100ft
ACK07056 3/4" 1-5/32" 13/64" 2-1/4" 36 PSI 29.9 in. Hg 400ft
ACK00061 7/8" 1-3/8" 1/4" 2-1/2" 38 PSI 29.9 in. Hg 50ft
ACK02061 7/8" 1-3/8" 1/4" 2-1/2" 38 PSI 29.9 in. Hg 50ft
ACK37061 7/8" 1-3/8" 1/4" 2-1/2" 38 PSI 29.9 in. Hg 300ft
ACK00065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 50ft
ACK02065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 100ft
ACK36075 1-1/2" 2-1/4" 3/8" 4-3/8" 34 PSI 26.0 in. Hg 60ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® M-34-R Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
