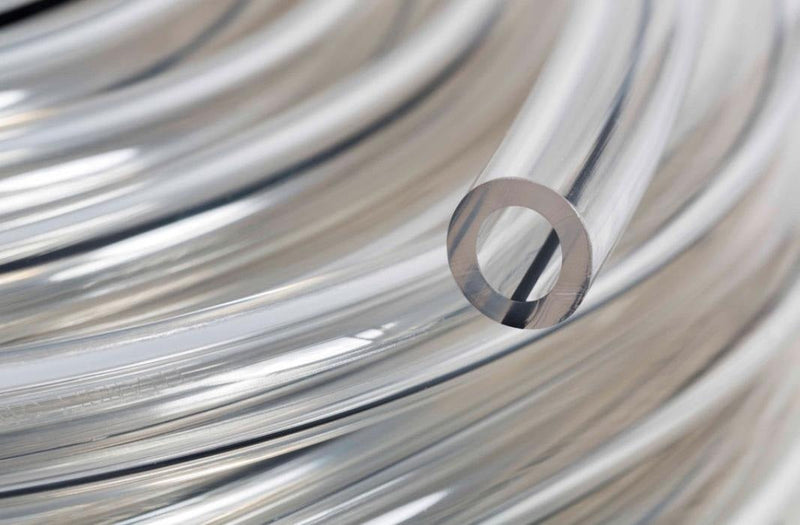

ACR02019 Tygon® by Saint Gobain | A24 | Single Tube Clear Vacuum Tubing for Milking Equipment | 1/4" ID x 1/2" OD x 1/8" Wall | 100' Package Length

ACR02019 Tygon® by Saint Gobain | A24 | Single Tube Clear Vacuum Tubing for Milking Equipment | 1/4" ID x 1/2" OD x 1/8" Wall | 100' Package Length

Minimum Order Quantity: 28 Boxes

Save $43.35 Save $43.35
$114.38
$114.38 - $114.38
$114.38
$71.03
$71.03 - $71.03
$71.03

Saint Gobain
Tygon® A24 | Clear Vacuum Tubing for Milking Equipment

Tygon® A24 tubing from Saint-Gobain is designed specifically for the dairy industry and is ideal for raw milk transport lines and dairy processing.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: ACR02019 Saint Gobain
Brand: Tygon S3
Series: Transflow
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements
Thermoplastic Elastomer Flexible Tubing

Tygon® A24 | Clear Vacuum Tubing for Milking Equipment

Tygon® A24 tubing from Saint-Gobain is designed specifically for the dairy industry and is ideal for raw milk transport lines and dairy processing. It features a smooth inner surface to help prevent blockages that can restrict airflow, and its clarity allows you to detect potential backflows of milk into the lines – reducing maintenance and inspection concerns. This phthalate-free milk tubing, embedded with Tygon's trademarked black stripe, is made to work with flexible Tygon® M-34-R tubing. When combined, the two products create a vacuum of air that produces a continuous, reliable flow of milk during the milking process.

1

What is this product used for?
  • Raw milk transport lines
  • Dairy processing
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Clear with embedded black stripe

Maximum Recommended Operating Temp. °F (°C)

165°F (74°C)

Brittleness by Impact Temp. °F (°C)

-32°F (-36°C)

Specifications

N/A

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Holds full vacuum at room temperature.
  • Will not crack and age like rubber tubing.
  • Lightweight and flexible for quick installation.
  • Non-wetting properties allow easy cleaning and complete drainage.
  • Durability for long and reliable service.
  • Contains no BPA or phthalates.
  • To be used in conjunction with Tygon® M-34-R tubing.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min.
Bend
Radius
(in.)		 Max.
Working
Pressure
at 73 deg. F
(PSI)		 Vacuum
Rating
at 73 deg. F
(in. Hg)		 Length
ACR02019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 100ft
ACR02021 9/32" 17/32" 1/8" 3/4" 55 PSI 29.9 in. Hg 100ft
ACR02029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 100ft
ACR02034 7/16" 11/16" 1/8" 1-3/8" 39 PSI 29.9 in. Hg 100ft
ACR02038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 26.0 in. Hg 100ft
Twin Tube
ACR02916 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 100ft
ACR02917 9/32" 17/32" 1/8" 3/4" 55 PSI 29.9 in. Hg 100ft
ACR02918 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 100ft

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® A24 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
