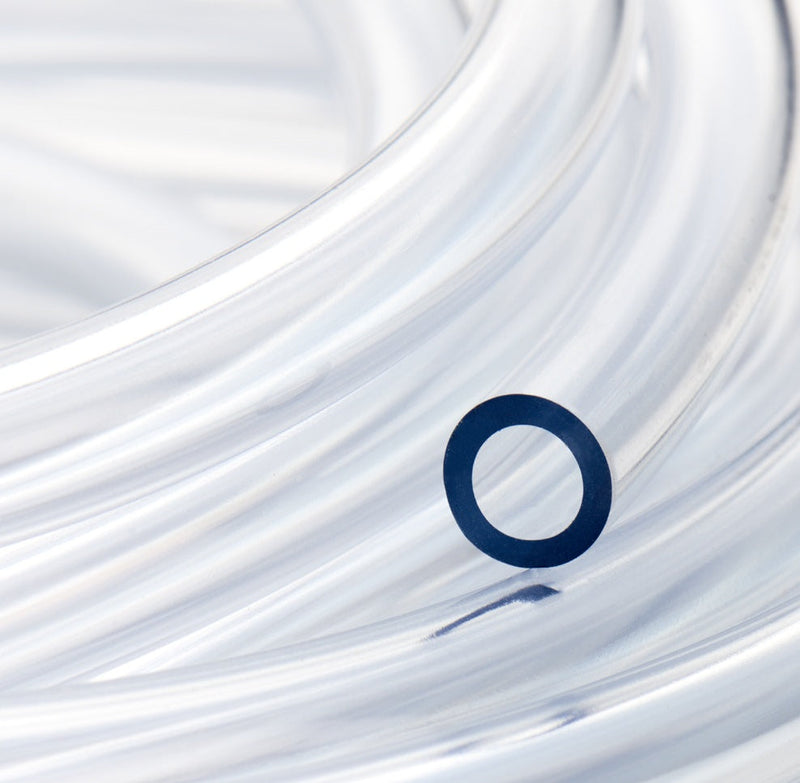

ADF00007 Tygon® by Saint Gobain | ND 100-65 | Medical/Surgical Device Tubing | 1/8" ID x 1/4" OD x 1/16" Wall | 50' Package Length

ADF00007 Tygon® by Saint Gobain | ND 100-65 | Medical/Surgical Device Tubing | 1/8" ID x 1/4" OD x 1/16" Wall | 50' Package Length

Save $17.96 Save $17.96
$62.87
$62.87 - $62.87
$62.87
$44.91
$44.91 - $44.91
$44.91

Saint Gobain
Tygon® ND 100-65 | Medical/Surgical Device Tubing

The physical properties of Tygon ND 100-65 make it an ideal choice for dialysis, drug delivery, respiratory therapy, diagnostic drain, and peristaltic pumps for various fluids.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: ADF00007 Saint Gobain
Brand: Tygon
Series: ND-100-65
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.25in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: European Pharmacopoeia 3.1.1.2, ISO 10993 - In Vitro Platelet Aggregation, ISO 10993 - Unactivated Partial Thromboplastin Time Assay, ISO 10993-10, ISO 10993-3, ISO 10993-4, ISO 10993-5, USP - Chromogenic Testing, USP - Chromogenic Validation, USP - Class VI, USP - Physicochemical Testing - Elastomeric Closures, USP - Pyrogens, USP - Physicochemical Testing - Plastics
Thermoplastic Tubing

Tygon® ND 100-65 | Medical/Surgical Device Tubing

Tygon® ND 100-65 tubing was engineered for optimal performance in medical device applications. This tubing is clear for easy visualization of fluid flow, has a robust portfolio of biocompatibility characteristics, and is easy to bond and weld.

1

What is this product used for?
  • Blood and IV solutions
  • Chemotherapy drug delivery
  • Diagnostic equipment, IVDs
  • Dialysis equipment
  • Minimally invasive devices
  • Peristaltic pumps
  • Respiratory therapy
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp. °F (°C)

165°F (74°C)

Brittleness by Impact Temp. °F (°C)

-44°F (-42°C)

Specifications

Meets the requirements of various ISO 10993 and USP tests (e.g., ISO 10993-3, ISO-10993-4, ISO 10993-5, ISO-10993-6, ISO 10993-11, ISO 10993-23, USP <88>.

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Meets criteria of various ISO 10993 and USP tests.
  • Regular evaluations to ensure REACH compliance.
  • Crystal clear for easy visualization of fluid flow.
  • Effectively bonded/welded using various methods.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Min. Bend
Radius
(in.)		 Max. Suggested
Working Pressure
at 73 deg. F
(PSI)*		 Vacuum Rating
at 73 deg. F
(in. Hg)		 Length
ADF00001 1/32" 3/32" 1/32" 1/8" 100 PSI 29.9 in. Hg 50ft
ADF00002 1/16" 1/8" 1/32" 1/4" 55 PSI 29.9 in. Hg 50ft
ADF00003 1/16" 3/16" 1/16" 1/8" 100 PSI 29.9 in. Hg 50ft
ADF00004 3/32" 5/32" 1/32" 3/8" 40 PSI 29.9 in. Hg 50ft
ADF00005 3/32" 7/32" 1/16" 1/4" 70 PSI 29.9 in. Hg 50ft
ADF00006 1/8" 3/16" 1/32" 1/2" 30 PSI 25 in. Hg 50ft
ADF00007 1/8" 1/4" 1/16" 3/8" 55 PSI 29.9 in. Hg 50ft
ADF00009 5/32" 7/32" 1/32" 3/4" 25 PSI 15 in. Hg 50ft
ADF00010 5/32" 9/32" 1/16" 1/2" 45 PSI 29.9 in. Hg 50ft
ADF00011 3/16" 1/4" 1/32" 1" 20 PSI 10 in. Hg 50ft
ADF00012 3/16" 5/16" 1/16" 5/8" 40 PSI 29.9 in. Hg 50ft
ADF00013 3/16" 3/8" 3/32" 1/8" 55 PSI 29.9 in. Hg 50ft
ADF00016 1/4" 5/16" 1/32" 1-5/8" 18 PSI 5 in. Hg 50ft
ADF00017 1/4" 3/8" 1/16" 1" 30 PSI 25 in. Hg 50ft
ADF00018 1/4" 7/16" 3/32" 3/4" 45 PSI 29.9 in. Hg 50ft
ADF00019 1/4" 1/2" 1/8" 5/8" 55 PSI 29.9 in. Hg 50ft
ADF00022 5/16" 7/16" 1/16" 1-3/8" 25 PSI 15 in. Hg 50ft
ADF00023 5/16" 1/2" 3/32" 1" 35 PSI 29.9 in. Hg 50ft
ADF00024 5/16" 9/16" 1/8" 7/8" 45 PSI 29.9 in. Hg 50ft
ADF00027 3/8" 1/2" 1/16" 1-3/4" 20 PSI 10 in. Hg 50ft
ADF00028 3/8" 9/16" 3/32" 1-3/8" 30 PSI 25 in. Hg 50ft
ADF00029 3/8" 5/8" 1/8" 1-1/8" 40 PSI 29.9 in. Hg 50ft
ADF00033 7/16" 5/8" 3/32" 1-3/4" 25 PSI 18 in. Hg 50ft
ADF00036 1/2" 5/8" 1/16" 2-7/8" 18 PSI 6 in. Hg 50ft
ADF00037 1/2" 11/16" 3/32" 2-1/8" 25 PSI 15 in. Hg 50ft
ADF00038 1/2" 3/4" 1/8" 1-3/4" 30 PSI 25 in. Hg 50ft
ADF00041 9/16" 3/4" 3/32" 2-1/2" 20 PSI 10 in. Hg 50ft
ADF00045 5/8" 13/16" 3/32" 3" 20 PSI 9 in. Hg 50ft
ADF00046 5/8" 7/8" 1/8" 2-3/8" 25 PSI 15 in. Hg 50ft
ADF00053 3/4" 1" 1/8" 3-1/4" 20 PSI 10 in. Hg 50ft
ADF00059 7/8" 1-1/8" 1/8" 4-1/8" 20 PSI 8 in. Hg 50ft
ADF00062 1" 1-1/4" 1/8" 5-1/8" 18 PSI 4 in. Hg 50ft
ADF02002 1/16" 1/8" 1/32" 1/4" 55 PSI 29.9 in. Hg 100ft
ADF02004 3/32" 5/32" 1/32" 3/8" 40 PSI 29.9 in. Hg 100ft
ADF02006 1/8" 3/16" 1/32" 1/2" 30 PSI 25 in. Hg 100ft
ADF02007 1/8" 1/4" 1/16" 3/8" 55 PSI 29.9 in. Hg 100ft
ADF02010 5/32" 9/32" 1/16" N/A N/A N/A 100ft
ADF02012 3/16" 5/16" 1/16" 5/8" 40 PSI 29.9 in. Hg 100ft
ADF02017 1/4" 3/8" 1/16" 1" 30 PSI 25 in. Hg 100ft
ADF02018 1/4" 7/16" 3/32" 3/4" 45 PSI 29.9 in. Hg 100ft
ADF02022 5/16" 7/16" 1/16" 1-3/8" 25 PSI 15 in. Hg 100ft
ADF02027 3/8" 1/2" 1/16" 1-3/4" 20 PSI 10 in. Hg 100ft
ADF02029 3/8" 5/8" 1/8" 1-1/8" 40 PSI 29.9 in. Hg 100ft
ADF02037 1/2" 11/16" 3/32" 2-1/8" 25 PSI 15 in. Hg 100ft
ADF02038 1/2" 3/4" 1/8" 1-3/4" 30 PSI 25 in. Hg 100ft
i
Safety factor of 5:1 ratio of burst pressure to working pressure.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® ND 100-65 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.
