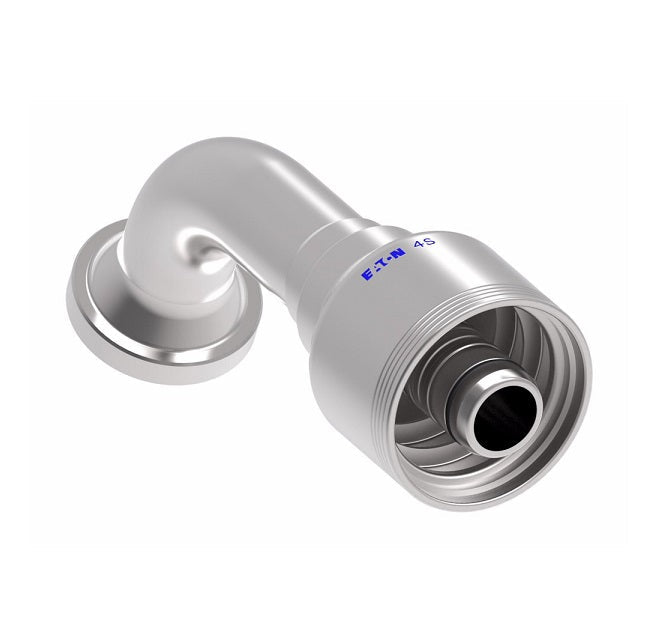

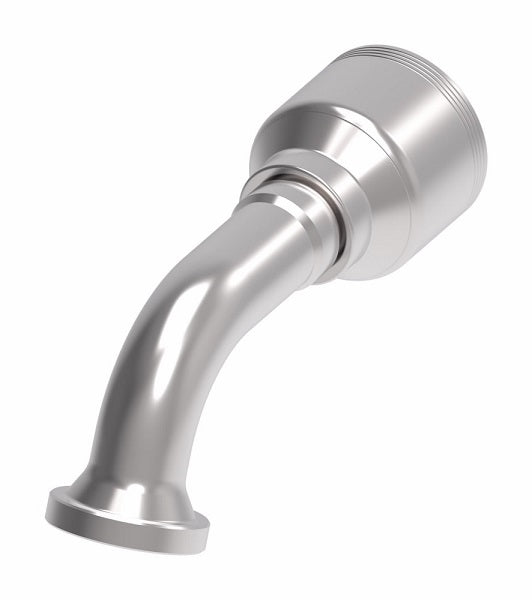

4S16FLE12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -16 Code 61 Flange x -12 Hose Barb | Steel

4S16FLE12 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -16 Code 61 Flange x -12 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$829.20 - $829.20

$829.20

$829.20 - $829.20

$829.20

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLE) - 67.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S16FLE12 Danfoss \| 10 \|
Shape (Orientation):	67.5 Degree
Ends Configuration:	1in Code 61 Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E Ø	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E Ø	H
4S8FLE8	-08	-	-08	1.19"	3.31"	2.24"	0.36"	1.27"
4S12FLE12	-12	19	-12	1.50"	5.06"	3.64"	0.56"	1.70"
4S16FLE12	-16	19	-12	1.75"	5.79"	4.36"	0.56"	2.03"
4S16FLE16	-16	25	-16	1.75"	5.19"	4.34"	0.76"	2.03"
4S20FLE16	-20	25	-16	2.00"	6.91"	5.34"	0.76"	2.54"
4S20FLE20	-20	31	-20	2.00"	7.55"	5.39"	0.99"	2.54"
4S24FLE20	-24	31	-20	2.38"	7.12"	4.95"	0.99"	2.34"
4S24FLG24	-24	38	-24	2.37"	9.61"	6.54"	1.22"	2.96"
4S32FLE24	-32	38	-24	2.81"	11.58"	8.51"	1.22"	3.91"
4S32FLE32	-32	-	-32	-	-	-	-	-
