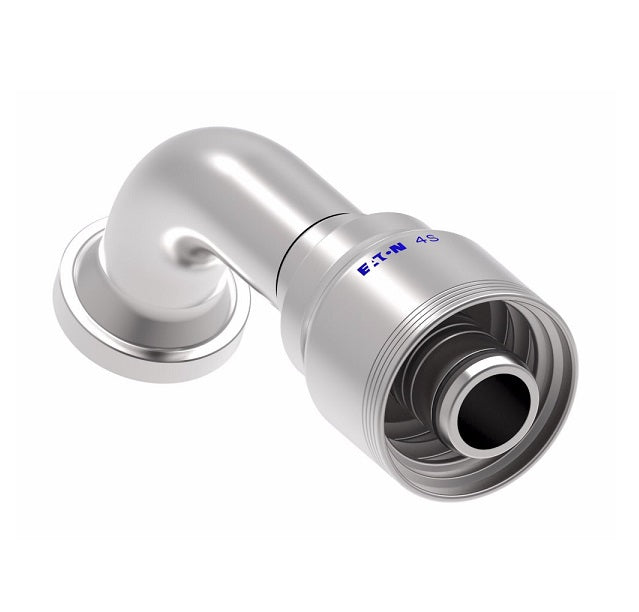

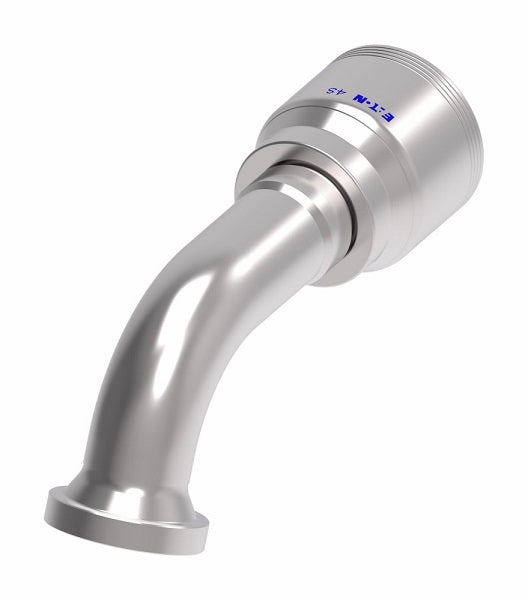

4S20FLE16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -20 Code 61 Flange x -16 Hose Barb | Steel
4S20FLE16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -20 Code 61 Flange x -16 Hose Barb | Steel
4S20FLE16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -20 Code 61 Flange x -16 Hose Barb | Steel
4S20FLE16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -20 Code 61 Flange x -16 Hose Barb | Steel

4S20FLE16 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Flange 67.5° Elbow (FLE) Crimp Fitting | -20 Code 61 Flange x -16 Hose Barb | Steel

$134.90 - $134.90
$134.90
$134.90 - $134.90
$134.90

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLE) - 67.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S20FLE16 Danfoss
Shape (Orientation): 67.5 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E Ø H
Dash Size DN Dash Size
4S8FLE8 -08 - -08 1.19" 3.31" 2.24" 0.36" 1.27"
4S12FLE12 -12 19 -12 1.50" 5.06" 3.64" 0.56" 1.70"
4S16FLE12 -16 19 -12 1.75" 5.79" 4.36" 0.56" 2.03"
4S16FLE16 -16 25 -16 1.75" 5.19" 4.34" 0.76" 2.03"
4S20FLE16 -20 25 -16 2.00" 6.91" 5.34" 0.76" 2.54"
4S20FLE20 -20 31 -20 2.00" 7.55" 5.39" 0.99" 2.54"
4S24FLE20 -24 31 -20 2.38" 7.12" 4.95" 0.99" 2.34"
4S24FLG24 -24 38 -24 2.37" 9.61" 6.54" 1.22" 2.96"
4S32FLE24 -32 38 -24 2.81" 11.58" 8.51" 1.22" 3.91"
4S32FLE32 -32 - -32 - - - - -
