Weatherhead by Danfoss

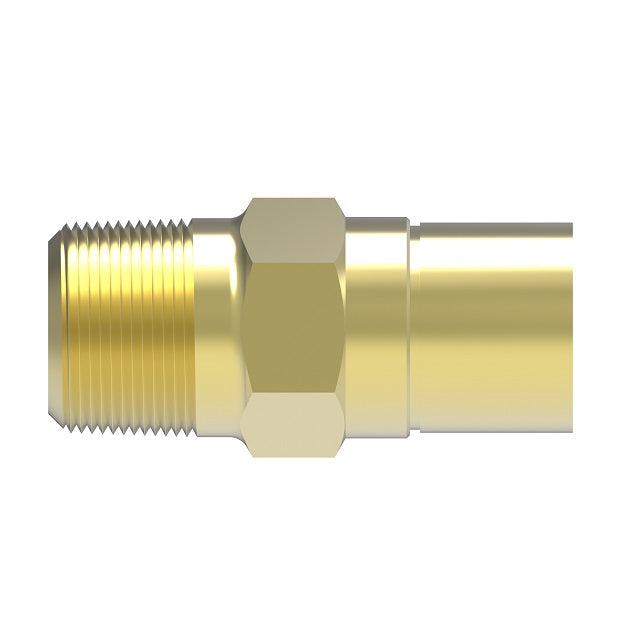

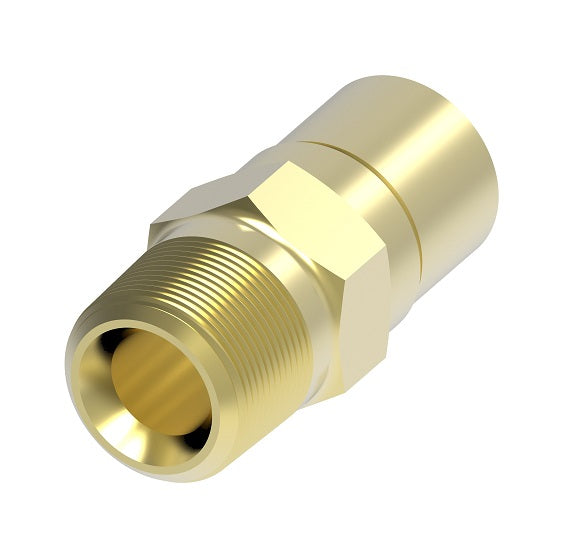

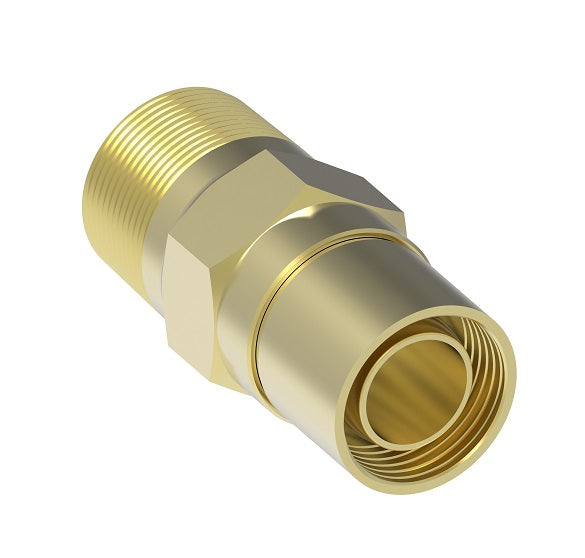

Everswage Crimp Fitting for Everflex Hose - Male Pipe - Straight

Specifications for Variant SKU: B-1112 Danfoss
Brand:	Weatherhead
Series:	Everswage Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Hose Barb, 3/4in Male NPT
Material(s):	Brass
Compatible with the following Series:	Everflex S-Series \| Everflex SC-Series

About:
Everswage hose ends are permanently attached to Everflex Smooth Bore hose using a swaging process. The unique design of the Everswage collar allows a hose assembly fabricator to slide several collars at once on the hose. This significantly reduces the time required to fabricate an assembly.
Note:
The operating pressure of 1/2" I.D. hoses are lowered to 1500 psi, and 5/8" I.D. hoses are lowered to 1250 psi when BRASS Everswage fittings are used.
Compatible Hose:
For use with Everflex Hoses S, SC
Warning:
Selection of the proper end fitting for the hose end application is essential to the proper operation and safe use of the hose and related equipment. Inadequate attention to the selection of the end fittings for your application can result in leaking or the hose end blowing off the hose, leading to serious personal injury, death or property damage.


Part Number Brass	Part Number Carbon Steel	Part Number 300 Stainless Steel	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-off Factor**	E
B-1103	-	S-1103	5/32"	1/8"	1/8-27"	1.19"	3/4"	1/2"
B-1104-1	C-1104-1	S-1104-1	3/16"	1/8"	1/8-27"	1.34"	3/4"	1/2"
B-1104-2	C-1104-2	S-1104-2	3/16"	1/4"	1/4-18"	1.47"	7/8"	9/16"
B-1105	C-1105	S-1105	1/4"	1/4"	1/4-18	-	-	-
B-1105-1/8	-	-	1/4"	1/8"	1/8"	1.34"	15/16"	9/16"
B-1106-1	C-1106-1	S-1106-1	5/16"	1/4"	1/4-18"	1.47"	7/8"	11/16"
B-1106-2	C-1106-2	S-1106-2	5/16"	3/8"	3/8-18"	1.53"	15/16"	11/16"
-	-	S-1106-3	5/16"	1/2"	1/2"	1.75"	1-1/8"	7/8"
B-1108-1	C-1108-1	S-1108-1	13/32"	3/8"	3/8-18"	1.84"	1"	3/4"
B-1108-2	C-1108-2	S-1108-2	13/32"	1/2"	1/2-14"	1.97"	1-1/8"	7/8"
B-1110	C-1110	S-1110	1/2"	1/2"	1/2-14"	1.97"	1-3/16"	7/8"
B-1112	C-1112	S-1112	5/8"	3/4"	3/4-14"	2.14"	1-5/16"	1-1/16"
B-1116	C-1116	S-1116	7/8"	1"	1-11.5"	2.94"	1-5/8"	1-3/8"
B-1120Z*	C-1120Z*	S-1120Z*	1-1/8"	1-1/4"	1-1/4-11.5"	3.03"	1-3/4"	1-3/4"

* The 20Z size has a double stainless steel wire reinforcement.

** To determine the correct length of hose, subtract the cut-off factor for each end fitting from the overall length of assembly.

Note: Drawings may differ from actual parts.
