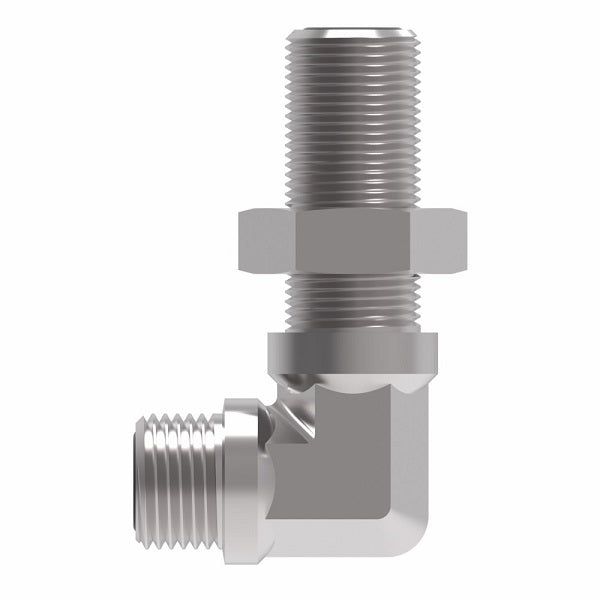

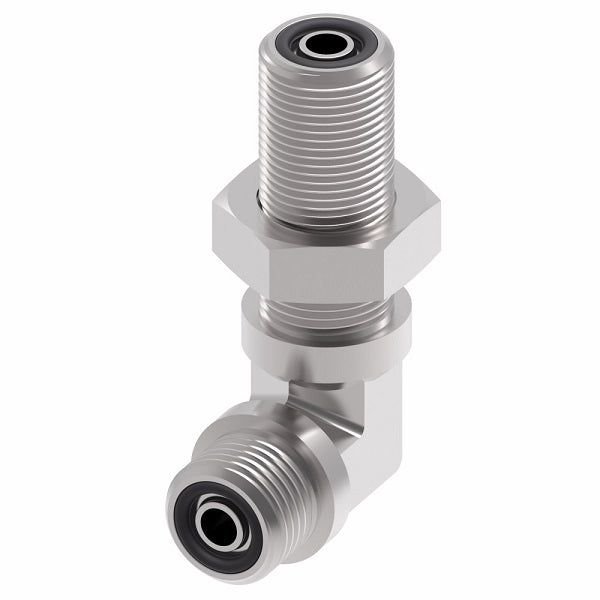

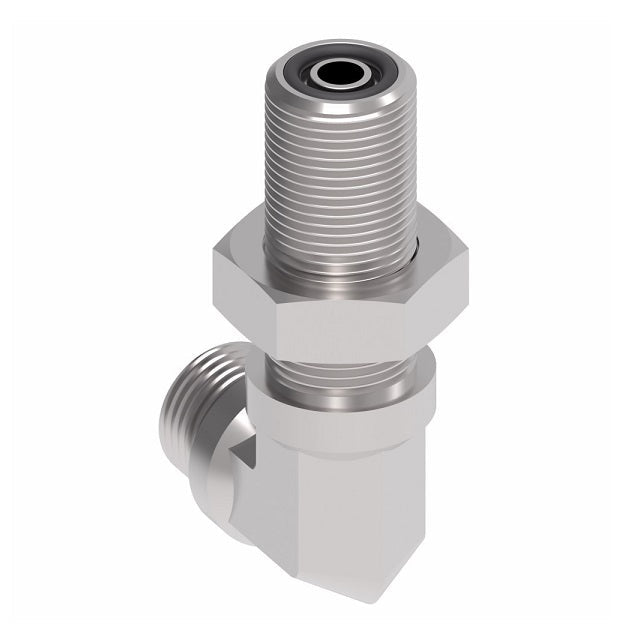

FF2030T1010S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel
FF2030T1010S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel
FF2030T1010S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel
FF2030T1010S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel

FF2030T1010S Aeroquip by Danfoss | ORS Male/ORS Male 90° Elbow Bulkhead Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel

$12.58 - $12.58
$12.58
$12.58 - $12.58
$12.58

Aeroquip® by Danfoss
ORS Male/ORS Male Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
90° Elbow

Formerly Weatherhead Series 4525x

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2030T1010S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520701
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B E
FF2030T0404S - 0.25" 9/16-18 9/16-18 0.89" 1.85" 0.17"
FF2030T0606S FF2030H4-0606S 0.38" 11/16-16 11/16-16 1.02" 2.05" 0.26"
FF2030T0806S - 0.50" 13/16-16 11/16-16 1.14" 2.12" 0.26"
FF2030T0808S FF2030H4-0808S 0.50" 13/16-16 13/16-16 1.14" 2.18" 0.38"
FF2030T1010S - 0.63" 1-14 1-14 1.36" 2.48" 0.48"
FF2030T1212S FF2030H4-1212S 0.75" 1-3/16-12 1-3/16-12 1.52" 2.65" 0.61"
FF2030T1616S FF2030H4-1616S 1.00" 1-7/16-12 1-7/16-12 1.67" 2.80" 0.81"
FF2030T2020S - 1.25" 1-11/16-12 1-11/16-12 1.79" 2.97" 1.03"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
