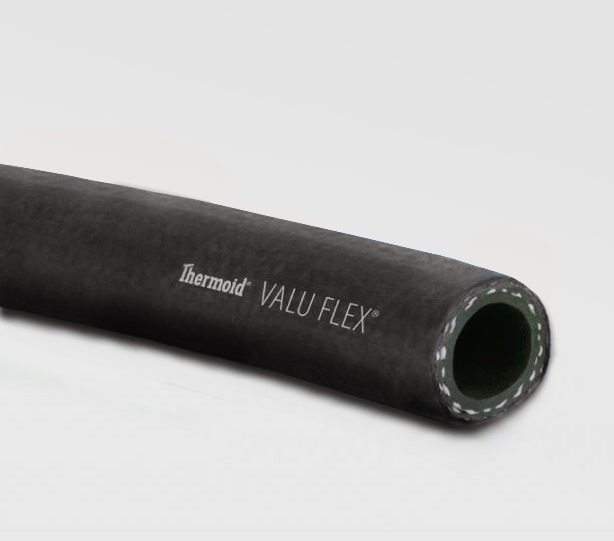

00114604200 Thermoid 200 PSI Valuflex/GS Black Multipurpose Air and Water Hose 1/4" ID

00114604200 by Thermoid | Valuflex/GS Multipurpose Air and Water Hose | 1/4" ID | Black | 200 PSI

$1.33 - $933.33
$1.33
$0.83
$0.83 - $578.67
$0.83

Thermoid
Valu Flex® | Valuflex/GS Multipurpose Air and Water Hose

Valu Flex® is one of the most versatile general service air and water hoses available today. Hoses are lightweight, flexible, and resists abrasion, heat and ozone, making them useful in various applications.
Specifications for Variant SKU: 00114604200 Thermoid
Brand: Valuflex
Series: GS Black Multipurpose Air and Water Hose
Hose Color(s): Black
Internal Diameter: 0.25in
Outer Diameter: 0.49in
Tubing Construction: EPDM
Cover Construction: EPDM
Compatible with the following Series: King Crimp FJIC Series  |   Domestic Cam & Groove  |   Global Cam & Groove  |   DF-Series  |   BR-Series  |   102 Series  |   103 Series  |   104 Series  |   143 Series  |   144 Series  |   145 Series  |   588 Series  |   585 Series  |   King Combination Knurled NPT  |   King Combination NPT  |   King Combination NPT Reducer  |   Global Air King Chicago

SPECIFICATIONS

Application: General service air and water hose.
Do not use this product as a steam hose or fuel (for example petroleum-based fuels and oils) hose.
CAUTION: This product is not recommended for environments where oil is present.
Tube: EPDM, ARPM - Class C - Heat Resistant Reinforcement: Spiral Polyester Yarn
Cover: EPDM - Abrasion, Ozone, and Weather Resistant Temperature Range: -40°F to +212°F (-40°C to +100°C)
Branding: Thermoid Valu Flex Size PSI WP Made In USA Month/Day/Year Time Stamp
Other Features:
  • Abrasion, Heat, Ozone, & Weathering Resistant.
  • Spiral Polyester Yarn reinforcement makes it easier to route assemblies, coil and handle the hose. Also makes it less susceptible to premature failure than braided hose if subjected to torque.
  • Pressureless cure system - minimal cast (natural curvature of the hose). Extends the life of the rubber compounds.
  • Air mandrel manufacturing process - no internal contamination of the inside diameter due to the lubricant. Eliminates the need for customers to flush the hose.
Valuflex/GS Series | Black
Part Number Inside Diameter Outside Diameter Reinforcement Spirals Operating Pressure (PSI) Min. Bend Radius Weight (Lbs/Ft)
00114604200 .25" .49" 2 200 1.5" .08
00114604400 .25" .62" 4 300 1.5" .15
00114605400 .3125" .62" 4 300 2.0" .13
00114606200 .375" .68" 2 200 2.25" .15
00114606400 .375" .71" 4 300 2.25" .17
00114608200 .50" .81" 2 200 3.00" .24
00114608400 .50" .84" 4 300 3.0" .24
00114610200 .625" .93" 4 200 3.75" .29
00114610400 .625" 1.00" 4 300 3.75" .29
00114612200 .75" 1.15" 4 200 4.50" .36
00114612400 .75" 1.15" 4 300 4.50" .40
00114616200 1" 1.37" 4 200 7.00" .49
00114616400 1" 1.43" 4 300 7.00" .49
00114620200 1.25" 1.75" 4 200 8.75" .79
00114624200 1.5" 2.00" 4 200 10.50" .90
00114632200 2" 2.55" 4 200 14.00" 1.08
Valuflex/GS Series | Red
Part Number Inside Diameter Outside Diameter Reinforcement Spirals Operating Pressure (PSI) Min. Bend Radius Weight (Lbs/Ft)
00114504200 .25" .49" 2 200 1.5" .09
00114504400 .25" .62" 4 300 1.5" .16
00114505200 .3125" .58" 2 200 2.0" .12
00114505400 .3125" .62" 4 300 2.0" .14
00114506200 .375" .68" 2 200 2.25" .16
00114506400 .375" .71" 4 300 2.25" .18
00114508200 .5" .81" 2 200 3.0" .25
00114508400 .5" .84" 4 300 3.0" .25
00114510200 .625" .93" 4 200 3.75" .30
00114510400 .625" 1.00" 4 300 3.75" .30
00114512200 .75" 1.15" 4 200 4.50" .38
00114512400 .75" 1.15" 4 300 4.50" .41
00114516300 1" 1.37" 4 200 7.0" .51
00114516400 1" 1.37" 4 300 7.0" .51
00114520200 1.25" 1.75" 4 200 8.750" .81
00114524200 1.50" 2.0" 4 200 10.50" .95
00114532200 2.0" 2.55" 4 200 14.0" 1.13

Bulk / By the Foot : We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with manufacturer guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.

Thermoid

Thermoid

Established in 1883, Thermoid produces one of the broadest lines of industrial rubber products available anywhere in the world. Made in the USA, our industrial hose products are selected and used by thousands of industrial customers and OEMs around the world.
