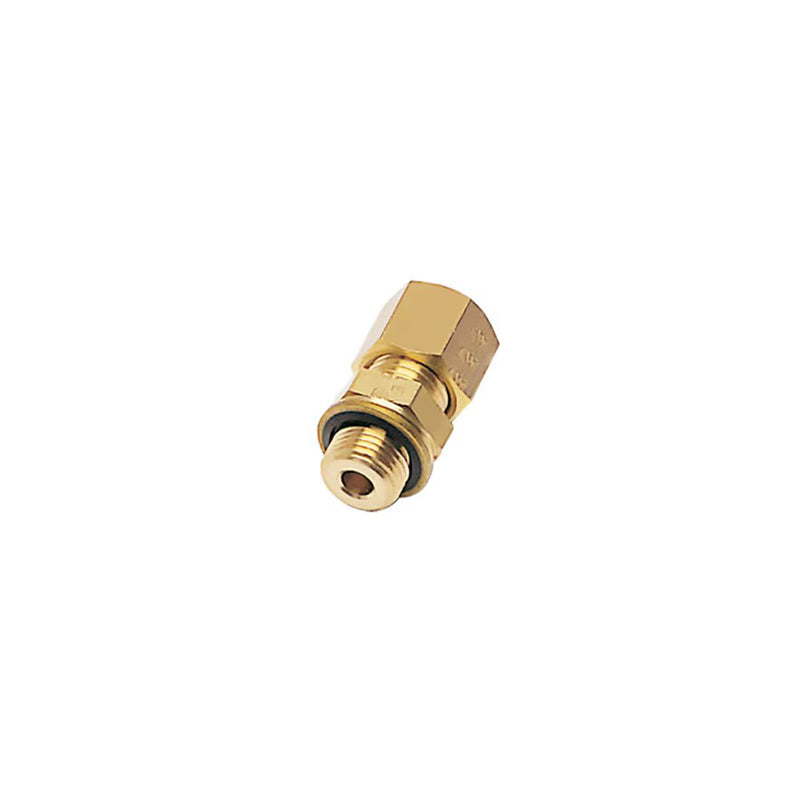

0101 10 17 39 by Parker | Legris Stud Fitting w/ Bi-Material Seal | 10 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex (F) | 19 mm Hex (F1) | Straight | Brass | Pack of 10

Save $11.07

$121.73

$121.73 - $121.73

$121.73

$110.66

$110.66 - $110.66

$110.66

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0101..39 Stud Fitting, with Bi-Material Seal, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0101 10 17 39 Parker \| 10 \|
Series:	0101 39 Series
Shape (Orientation):	Straight
Material(s):	Brass, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	E	F	F1	H (max)	H1	Kg
0101 04 10 39	4 mm	1/8"	5.5 mm	13 mm	10 mm	17.5 mm	9 mm	.016 Kg
0101 06 10 39	6 mm	1/8"	5.5 mm	13 mm	13 mm	19 mm	9.5 mm	.020 Kg
0101 06 13 39	6 mm	1/4"	7 mm	17 mm	13 mm	19 mm	10.5 mm	.030 Kg
0101 08 10 39	8 mm	1/8"	5.5 mm	13 mm	14 mm	20 mm	9.5 mm	.022 Kg
0101 08 13 39	8 mm	1/4"	7 mm	17 mm	14 mm	20.5 mm	10 mm	.031 Kg
0101 10 13 39	10 mm	1/4"	7 mm	17 mm	19 mm	25 mm	12 mm	.048 Kg
0101 10 17 39	10 mm	3/8"	9.5 mm	22 mm	19 mm	25.5 mm	13 mm	.062 Kg
0101 12 13 39	12 mm	1/4"	7 mm	19 mm	22 mm	25 mm	12 mm	.062 Kg
0101 12 17 39	12 mm	3/8"	9.5 mm	22 mm	22 mm	25 mm	13 mm	.071 Kg
0101 12 21 39	12 mm	1/2"	10.5 mm	27 mm	22 mm	25 mm	13.5 mm	.091 Kg
0101 14 17 39	14 mm	3/8"	9.5 mm	22 mm	24 mm	26.5 mm	12 mm	.074 Kg
0101 14 21 39	14 mm	1/2"	10.5 mm	27 mm	24 mm	26.5 mm	12.5 mm	.094 Kg
0101 16 21 39	16 mm	1/2"	10.5 mm	27 mm	27 mm	28.5 mm	14 mm	.111 Kg

Thread with bi-material seal
Bi-material sealing washers, part number 0139, can be found in the sub-chapter “Adaptors and Manifolds”.
