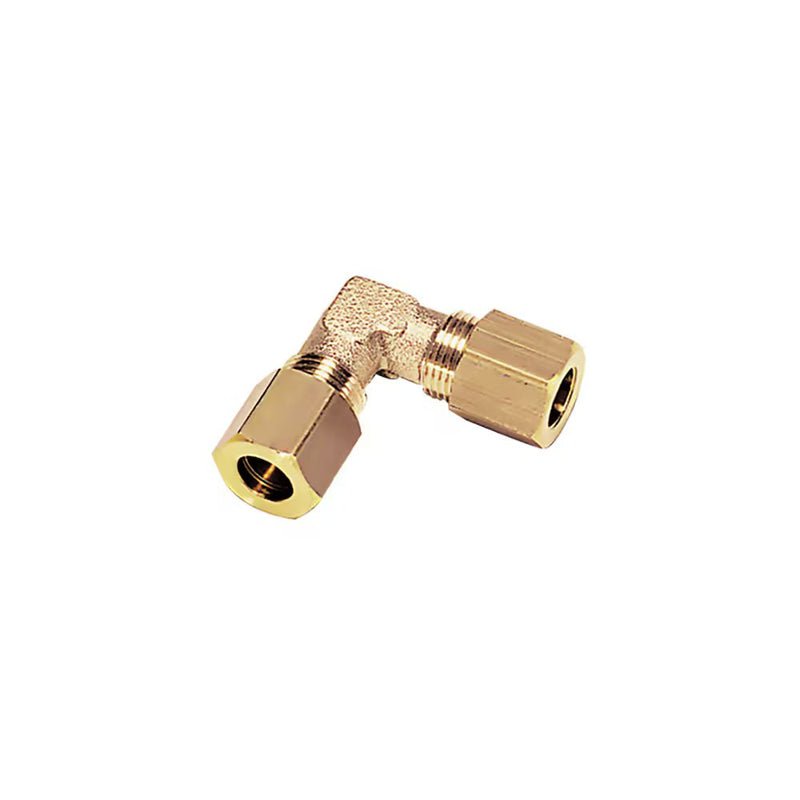

0102 28 00 by Parker | Legris Tube-to-Tube | 28 mm Tube Size | 42 mm Hex | 90° Elbow | Brass

0102 28 00 by Parker | Legris Tube-to-Tube | 28 mm Tube Size | 42 mm Hex | 90° Elbow | Brass | Pack of 5

Save $245.40 Save $245.40
$613.50
$613.50 - $613.50
$613.50
$368.10
$368.10 - $368.10
$368.10

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0102 Equal Elbow

Package Quantity: 5 Units

Specifications for Variant SKU: 0102 28 00 Parker | 5 |
Series: 0102 Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD F J L (max) Kg
0102 04 00 4 mm 10 mm 5 mm 19 mm .017 Kg
0102 05 00 5 mm 12 mm 8 mm 21 mm .025 Kg
0102 06 00 6 mm 13 mm 8 mm 22 mm .027 Kg
0102 08 00 8 mm 14 mm 10 mm 28 mm .038 Kg
0102 10 00 10 mm 19 mm 12 mm 30 mm .072 Kg
0102 12 00 12 mm 22 mm 15 mm 30 mm .097 Kg
0102 14 00 14 mm 24 mm 19 mm 35 mm .133 Kg
0102 15 00 15 mm 24 mm 19 mm 35 mm .122 Kg
0102 16 00 16 mm 27 mm 19 mm 39 mm .168 Kg
0102 18 00 18 mm 30 mm 23 mm 41 mm .236 Kg
0102 20 00 20 mm 32 mm 23 mm 42 mm .238 Kg
0102 22 00 22 mm 36 mm 27 mm 50 mm .375 Kg
0102 28 00 28 mm 42 mm 32 mm 54.5 mm .473 Kg
