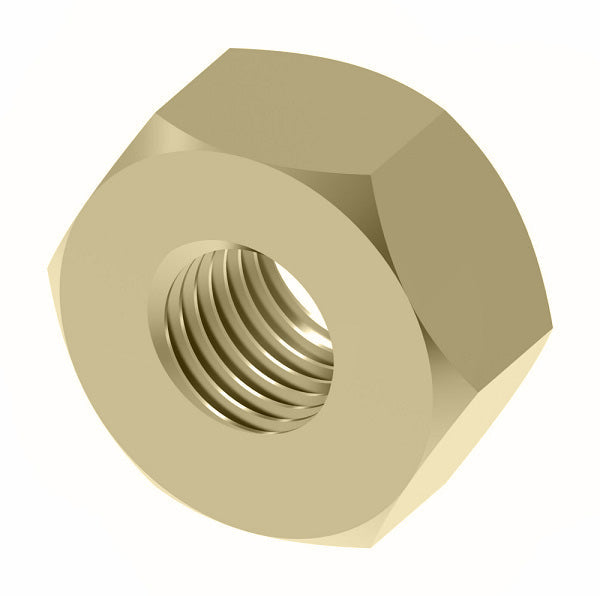

0102X8 by Danfoss | Compression Fitting | Bulkhead Nut | 1/2" Tube OD | Brass

Name: 0102X8 by Danfoss | Compression Fitting | Bulkhead Nut | 1/2" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 0102X8 Danfoss
Price: 15.64 USD
Availability: InStock

$15.64 - $15.64

$15.64

$15.64 - $15.64

$15.64

Aeroquip® by Danfoss
Compression Fitting - Bulkhead Nut - Straight

Used on 74x Bulkhead Unions.

Specifications for Variant SKU: 0102X8 Danfoss
Shape (Orientation):	No Orientation
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Low cost. No flaring. Easy to assemble. Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
Meets specifications and standards of ASA, ASME and SAE.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	1"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/4-18


Brass Part Number	Tube O.D.	Hex C	L	Thread Size
0102X4	1/4"	9/16"	0.25"	7/16-24
0102X6	3/8"	11/16"	0.25"	9/16-24
0102X8	1/2"	15/16"	0.38"	11/16-20
