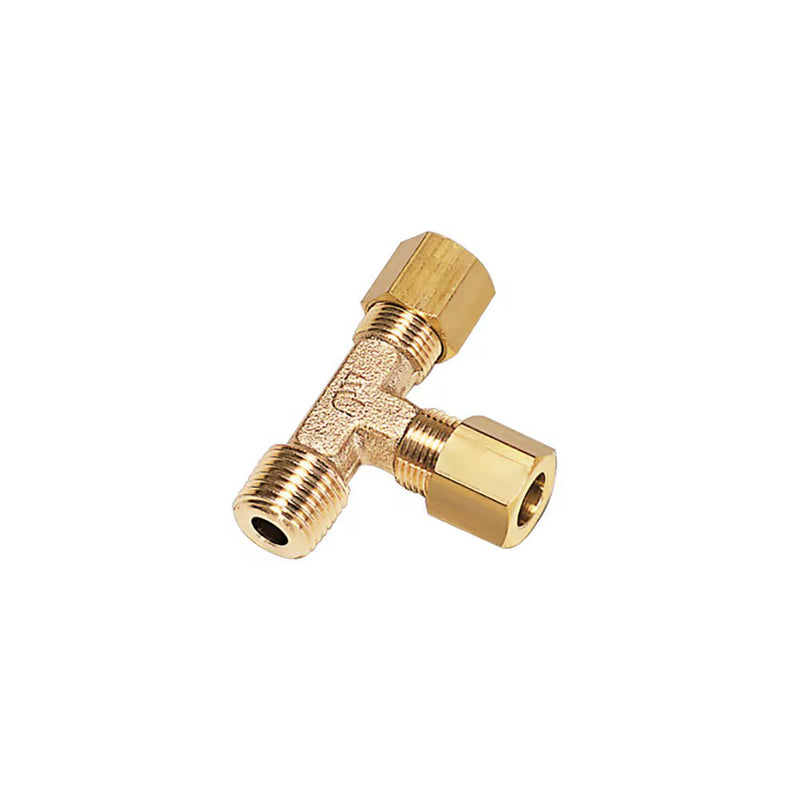

0103 12 13 by Parker | Legris Stud Fitting | 12 mm Tube Size x 1/4" Male BSPT Thread | 22 mm Hex | 55 mm Length | Tee | Brass | Pack of 10

Save $23.36

$256.93

$256.93 - $256.93

$256.93

$233.57

$233.57 - $233.57

$233.57

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0103 Stud Run Tee, Male BSPT Thread

Quantity

More payment options

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 0103 12 13 Parker \| 10 \|
Series:	0103 Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	F	H (max)	H1	H2	J	Kg
0103 04 10	4 mm	1/8"	10 mm	19 mm	17 mm	9.5 mm	8 mm	.025 mm
0103 06 10	6 mm	1/8"	13 mm	22 mm	18 mm	11 mm	8 mm	.033 mm
0103 06 13	6 mm	1/4"	13 mm	27 mm	21.5 mm	16 mm	10 mm	.048 mm
0103 08 13	8 mm	1/4"	14 mm	28 mm	22 mm	15 mm	10 mm	.050 mm
0103 10 13	10 mm	1/4"	19 mm	30 mm	25 mm	14.5 mm	12 mm	.085 mm
0103 12 13	12 mm	1/4"	22 mm	30 mm	26 mm	15 mm	15 mm	.114 mm

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.
