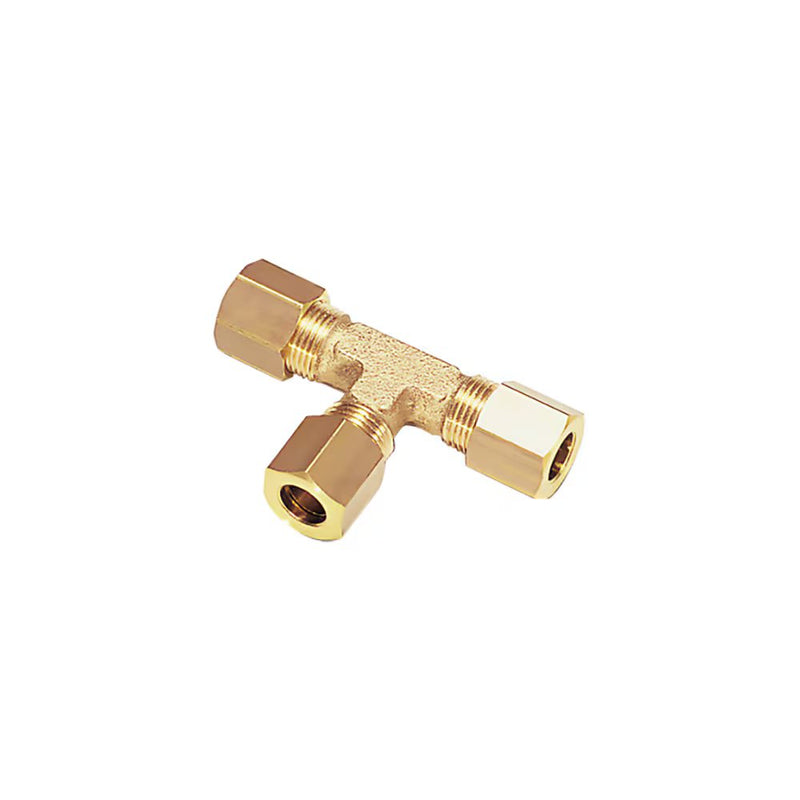

0104 05 00 by Parker | Legris Tube-to-Tube | 5 mm Tube Size | 12 mm Hex | 42 mm Length | Tee | Brass | Pack of 10

Save $12.47

$137.21

$137.21 - $137.21

$137.21

$124.74

$124.74 - $124.74

$124.74

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0104 Equal Tee

Quantity

More payment options

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 0104 05 00 Parker \| 10 \|
Series:	0104 Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	F	H	J	L/2	Kg
0104 04 00	4 mm	10 mm	9.5 mm	8 mm	19 mm	.029 Kg
0104 05 00	5 mm	12 mm	11 mm	8 mm	21 mm	.037 Kg
0104 06 00	6 mm	13 mm	11 mm	8 mm	22 mm	.040 Kg
0104 08 00	8 mm	14 mm	15 mm	10 mm	28 mm	.054 Kg
0104 10 00	10 mm	19 mm	14.5 mm	12 mm	30 mm	.104 Kg
0104 12 00	12 mm	22 mm	15 mm	15 mm	30 mm	.140 Kg
0104 14 00	14 mm	24 mm	18 mm	19 mm	35 mm	.190 Kg
0104 15 00	15 mm	24 mm	18 mm	19 mm	35 mm	.171 Kg
0104 16 00	16 mm	27 mm	21 mm	19 mm	39 mm	.245 Kg
0104 18 00	18 mm	30 mm	21.5 mm	23 mm	41 mm	.328 Kg
0104 20 00	20 mm	32 mm	21.5 mm	23 mm	42 mm	.336 Kg
0104 22 00	22 mm	36 mm	29 mm	27 mm	50 mm	.520 Kg
