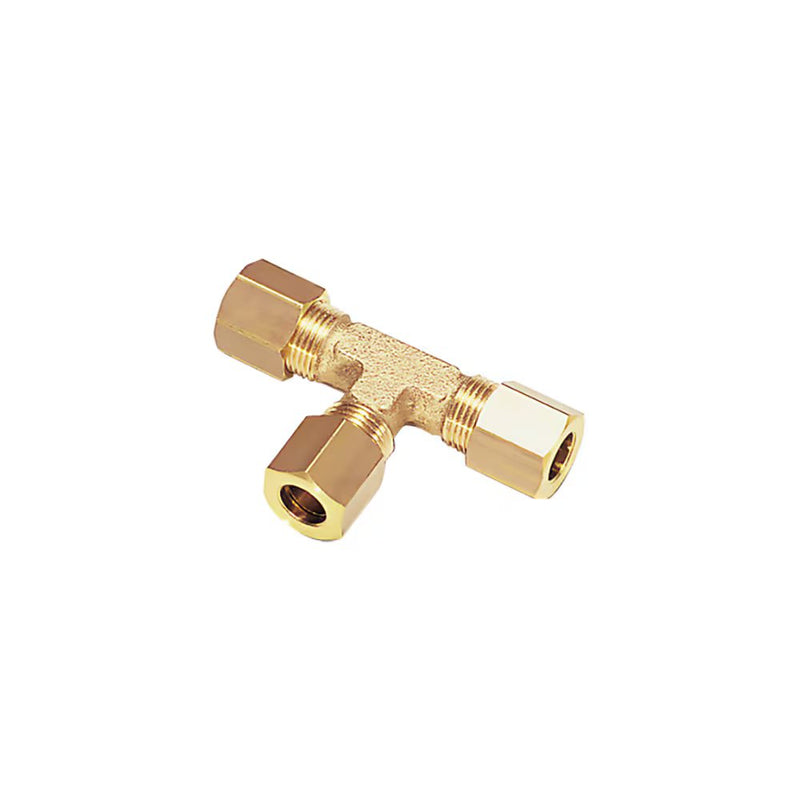

0104 18 00 by Parker | Legris Tube-to-Tube | 18 mm Tube Size | 30 mm Hex | 82 mm Length | Tee | Brass

0104 18 00 by Parker | Legris Tube-to-Tube | 18 mm Tube Size | 30 mm Hex | 82 mm Length | Tee | Brass | Pack of 5

Save $31.06 Save $31.06
$341.66
$341.66 - $341.66
$341.66
$310.60
$310.60 - $310.60
$310.60

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0104 Equal Tee

Package Quantity: 5 Units

Specifications for Variant SKU: 0104 18 00 Parker | 5 |
Series: 0104 Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD F H J L/2 Kg
0104 04 00 4 mm 10 mm 9.5 mm 8 mm 19 mm .029 Kg
0104 05 00 5 mm 12 mm 11 mm 8 mm 21 mm .037 Kg
0104 06 00 6 mm 13 mm 11 mm 8 mm 22 mm .040 Kg
0104 08 00 8 mm 14 mm 15 mm 10 mm 28 mm .054 Kg
0104 10 00 10 mm 19 mm 14.5 mm 12 mm 30 mm .104 Kg
0104 12 00 12 mm 22 mm 15 mm 15 mm 30 mm .140 Kg
0104 14 00 14 mm 24 mm 18 mm 19 mm 35 mm .190 Kg
0104 15 00 15 mm 24 mm 18 mm 19 mm 35 mm .171 Kg
0104 16 00 16 mm 27 mm 21 mm 19 mm 39 mm .245 Kg
0104 18 00 18 mm 30 mm 21.5 mm 23 mm 41 mm .328 Kg
0104 20 00 20 mm 32 mm 21.5 mm 23 mm 42 mm .336 Kg
0104 22 00 22 mm 36 mm 29 mm 27 mm 50 mm .520 Kg
