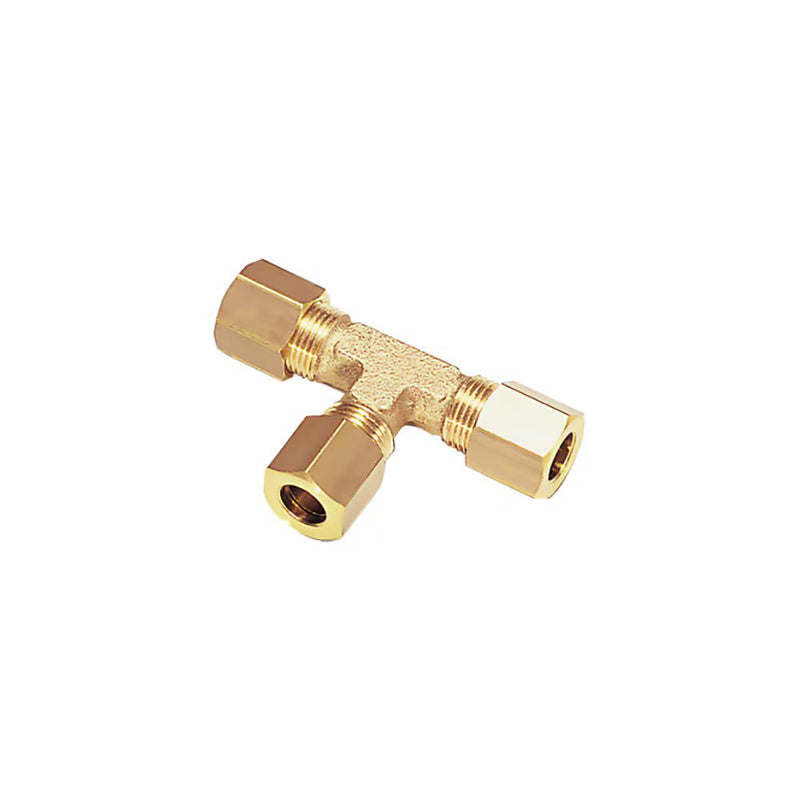

0104 20 00 by Parker | Legris Tube-to-Tube | 20 mm Tube Size | 32 mm Hex | 84 mm Length | Tee | Brass

Save $16.95

$116.83

$116.83 - $116.83

$116.83

$99.88

$99.88 - $99.88

$99.88

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0104 Equal Tee

Specifications for Variant SKU: 0104 20 00 Parker
Series:	0104 Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	F	H	J	L/2	Kg
0104 04 00	4 mm	10 mm	9.5 mm	8 mm	19 mm	.029 Kg
0104 05 00	5 mm	12 mm	11 mm	8 mm	21 mm	.037 Kg
0104 06 00	6 mm	13 mm	11 mm	8 mm	22 mm	.040 Kg
0104 08 00	8 mm	14 mm	15 mm	10 mm	28 mm	.054 Kg
0104 10 00	10 mm	19 mm	14.5 mm	12 mm	30 mm	.104 Kg
0104 12 00	12 mm	22 mm	15 mm	15 mm	30 mm	.140 Kg
0104 14 00	14 mm	24 mm	18 mm	19 mm	35 mm	.190 Kg
0104 15 00	15 mm	24 mm	18 mm	19 mm	35 mm	.171 Kg
0104 16 00	16 mm	27 mm	21 mm	19 mm	39 mm	.245 Kg
0104 18 00	18 mm	30 mm	21.5 mm	23 mm	41 mm	.328 Kg
0104 20 00	20 mm	32 mm	21.5 mm	23 mm	42 mm	.336 Kg
0104 22 00	22 mm	36 mm	29 mm	27 mm	50 mm	.520 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
