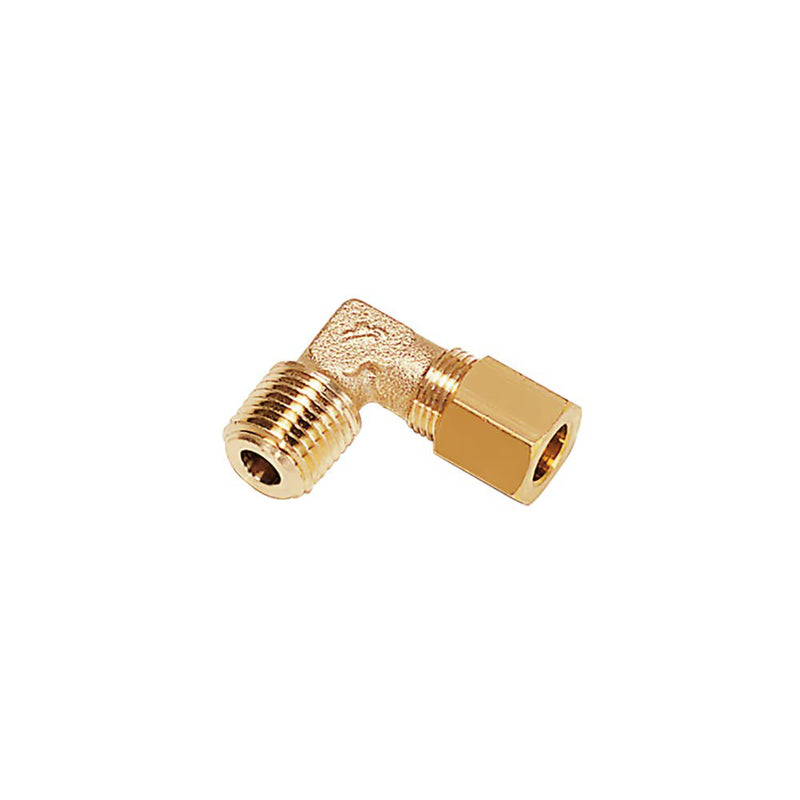

0109 25 34 by Parker | Legris Stud Fitting | 25 mm Tube Size x 1" Male BSPT Thread | 41 mm Hex | 90° Elbow | Brass | Pack of 5

Save $20.21

$222.35

$222.35 - $222.35

$222.35

$202.14

$202.14 - $202.14

$202.14

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0109 Stud Elbow, Male BSPT Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0109 25 34 Parker \| 5 \|
Series:	0109 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:

J


Part Number	ØD	C	F	H	L (max)	L1	Kg
0109 04 10	4 mm	1/8"	10 mm	17 mm	8 mm	19 mm	9.5 mm	.016 Kg
0109 04 13	4 mm	1/4"	10 mm	20 mm	10 mm	19 mm	11 mm	.025 Kg
0109 05 10	5 mm	1/8"	12 mm	17.5 mm	8 mm	21 mm	11 mm	.019 Kg
0109 05 13	5 mm	1/4"	12 mm	21.5 mm	10 mm	22 mm	12 mm	.029 Kg
0109 06 10	6 mm	1/8"	13 mm	18 mm	8 mm	22 mm	11 mm	.021 Kg
0109 06 13	6 mm	1/4"	13 mm	21.5 mm	10 mm	22 mm	12 mm	.030 Kg
0109 08 10	8 mm	1/8"	14 mm	18.5 mm	10 mm	28 mm	15 mm	.028 Kg
0109 08 13	8 mm	1/4"	14 mm	22 mm	10 mm	28 mm	15 mm	.033 Kg
0109 08 17	8 mm	3/8"	14 mm	24 mm	12 mm	28 mm	15 mm	.044 Kg
0109 10 13	10 mm	1/4"	19 mm	25 mm	12 mm	30 mm	14.5 mm	.053 Kg
0109 10 17	10 mm	3/8"	19 mm	25.5 mm	12 mm	30 mm	14.5 mm	.059 Kg
0109 10 21	10 mm	1/2"	19 mm	32 mm	19 mm	36 mm	21 mm	.108 Kg
0109 12 13	12 mm	1/4"	22 mm	26 mm	15 mm	30 mm	15 mm	.073 Kg
0109 12 17	12 mm	3/8"	22 mm	27 mm	15 mm	30 mm	15 mm	.077 Kg
0109 12 21	12 mm	1/2"	22 mm	32 mm	19 mm	36 mm	21 mm	.114 Kg
0109 14 17	14 mm	3/8"	24 mm	30 mm	19 mm	35 mm	18 mm	.104 Kg
0109 14 21	14 mm	1/2"	24 mm	32 mm	19 mm	35 mm	18 mm	.112 Kg
0109 15 17	15 mm	3/8"	24 mm	30 mm	19 mm	35 mm	18 mm	.101 Kg
0109 15 21	15 mm	1/2"	24 mm	32 mm	19 mm	35 mm	18 mm	.107 Kg
0109 16 17	16 mm	3/8"	27 mm	30 mm	19 mm	39 mm	21 mm	.122 Kg
0109 16 21	16 mm	1/2"	27 mm	33.5 mm	19 mm	39 mm	21 mm	.132 Kg
0109 16 27	16 mm	3/4"	27 mm	36.5 mm	23 mm	41 mm	23 mm	.189 Kg
0109 18 21	18 mm	1/2"	30 mm	35.5 mm	23 mm	41 mm	21.5 mm	.181 Kg
0109 18 27	18 mm	3/4"	30 mm	36.5 mm	23 mm	41 mm	21.5 mm	.197 Kg
0109 20 21	20 mm	1/2"	32 mm	36.5 mm	23 mm	42 mm	21.5 mm	.186 Kg
0109 22 27	22 mm	3/4"	36 mm	40 mm	27 mm	50 mm	30 mm	.293 Kg
0109 25 34	25 mm	1"	41 mm	44 mm	27 mm	54 mm	30 mm	.370 Kg
0109 28 34	28 mm	1"	42 mm	48 mm	32 mm	54 mm	30 mm	.378 Kg

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.
