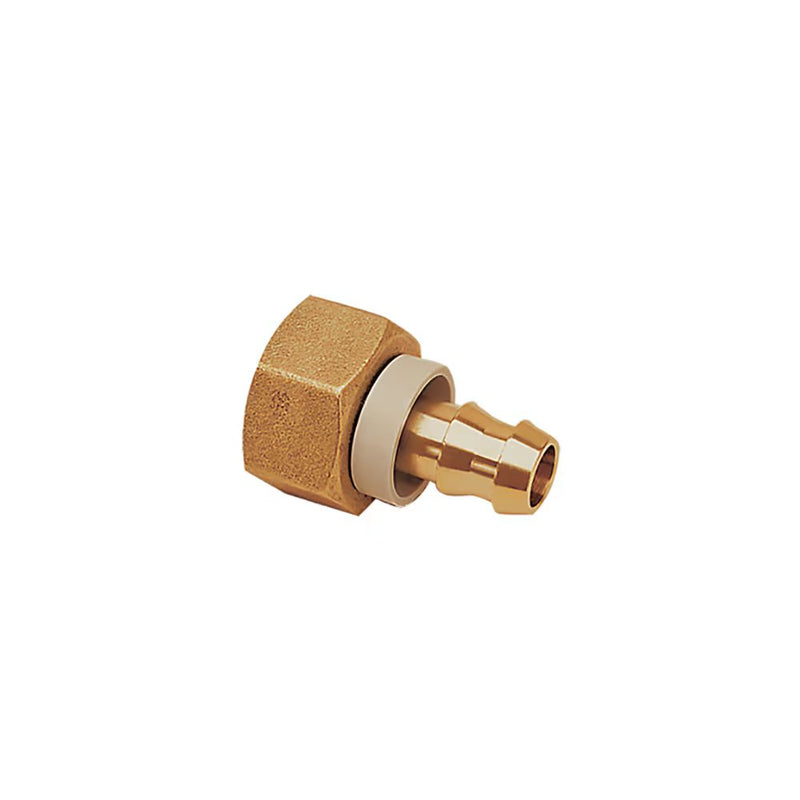

0132 10 56 by Parker | Legris Self-Fastening Barb Connector | 10 mm Tube Size x 6.3 mm Tube ID x 13 mm Tube OD | 19 mm Hex | 30 mm Length | Straight | Brass | Pack of 10

Save $5.95

$65.42

$65.42 - $65.42

$65.42

$59.47

$59.47 - $59.47

$59.47

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0132 Self-Fastening Barb Connector for Brass Compression Fitting

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0132 10 56 Parker \| 10 \|
Series:	0132 Series
Shape (Orientation):	Straight
Material(s):	Brass, Polymer
Special Properties:	Silicone Free, Spark Resistance

Technical Characteristics:	Compatible Fluids: Coolants, compressed air Working Pressure: 0 to 16 bar Working Temperature: 0°C to +100°C -20°C to +70°C (air)
Advantages:	Easy to use Spark resistant Economic and time saving solution Mechanical properties proven for use in industrial robotic installations Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:	Body: Brass Collar: Engineering polymer


Part Number	ØD1	ØD2	ØD3	F	G	L	L1	ØT	Kg
0132 06 56	6 mm	6.3 mm	13 mm	12 mm	16.5 mm	32.5 mm	12.5 mm	4.8 mm	.010 Kg
0132 10 56	10 mm	6.3 mm	13 mm	19 mm	16.5 mm	30 mm	14 mm	4.8 mm	.028 Kg
0132 10 60	10 mm	9.5 mm	16 mm	19 mm	19.5 mm	34 mm	14 mm	7.5 mm	.030 Kg
0132 14 60	14 mm	9.5 mm	16 mm	24 mm	19.5 mm	35.5 mm	15 mm	15 mm	.050 Kg
0132 14 62	14 mm	12.7 mm	19 mm	24 mm	23.5 mm	39.5 mm	15 mm	10 mm	.054 Kg
0132 18 62	18 mm	12.7 mm	19 mm	30 mm	23.5 mm	41.5 mm	17 mm	10 mm	.090 Kg
0132 18 66	18 mm	15.9 mm	23 mm	30 mm	27 mm	50 mm	17 mm	13.5 mm	.090 Kg
0132 22 69	22 mm	19.1 mm	27 mm	36 mm	30.5 mm	56.5 mm	17 mm	16 mm	.130 Kg

Polymer collar
