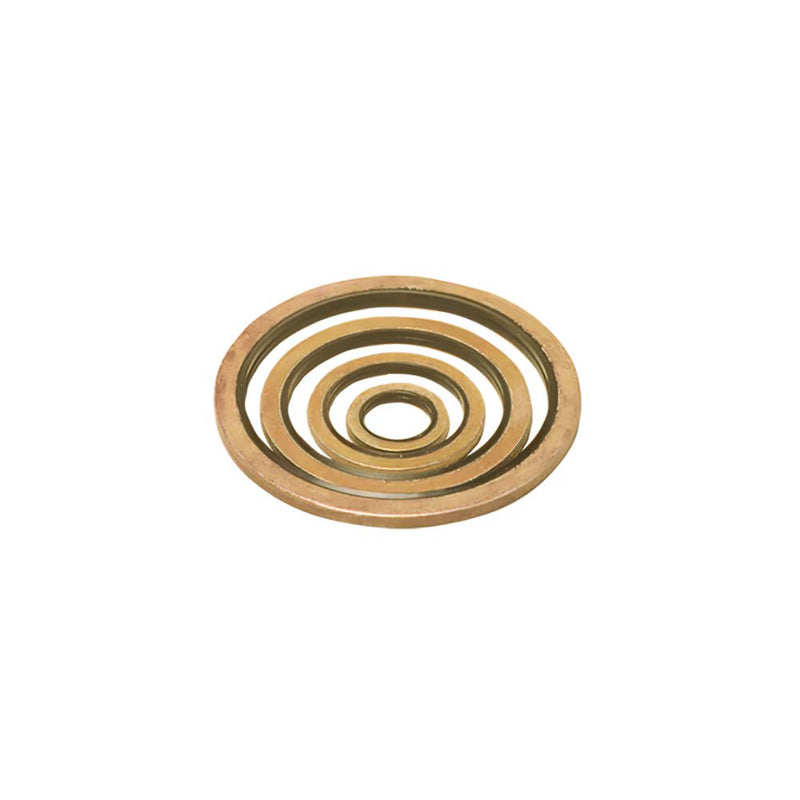

0137 10 00 by Parker | Legris Bonded Seal | 1/8" BSPP Thread Size | 17 mm OD | Zinc-Plated Steel | Pack of 10

Save $1.81

$19.92

$19.92 - $19.92

$19.92

$18.11

$18.11 - $18.11

$18.11

by Parker Hannifin
Sealing Accessories:0137 Bonded Seal

Quantity

More payment options

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 0137 10 00 Parker \| 10 \|
Series:	0137 Series
Shape (Orientation):	No Orientation


Adapters and Manifolds:


Part Number	C	G1	G2	K	Kg
0137 12 00	M12	12.7 mm	19 mm	1.5 mm	.001 Kg
0137 14 00	M14	14.7 mm	21 mm	1.5 mm	.002 Kg
0137 16 00	M16	16.7 mm	23 mm	1.5 mm	.002 Kg
0137 18 00	M18	18.7 mm	27 mm	2 mm	.004 Kg
0137 20 00	M20	20.7 mm	29 mm	2 mm	.004 Kg
0137 22 00	M22	22.7 mm	31 mm	2 mm	.005 Kg
0137 24 00	M24	24.7 mm	33 mm	2 mm	.005 Kg
0137 10 00	1/8"	10.7 mm	17 mm	1.5 mm	.001 Kg
0137 13 00	1/4"	13.7 mm	20.6 mm	2.1 mm	.002 Kg
0137 17 00	3/8"	17.4 mm	23.7 mm	1.5 mm	.002 Kg
0137 21 00	1/2"	21.5 mm	28.6 mm	2.5 mm	.004 Kg
0137 27 00	3/4"	27 mm	35.3 mm	2 mm	.007 Kg
0137 33 00	1"	33.7 mm	42 mm	2 mm	.007 Kg
0137 42 00	1-1/4"	43 mm	54 mm	2.5 mm	.013 Kg
0137 48 00	1-1/2"	49 mm	60 mm	2.5 mm	.015 Kg

Note: to use these bonded seals successfully it is necessary to spot face around the female
thread to provide a sealing “land“.
The diameter should be 0.3 mm to 0.5 mm greater than the external diameter of the seal.
The surface finish of the thread should not exceed 12 µ.
