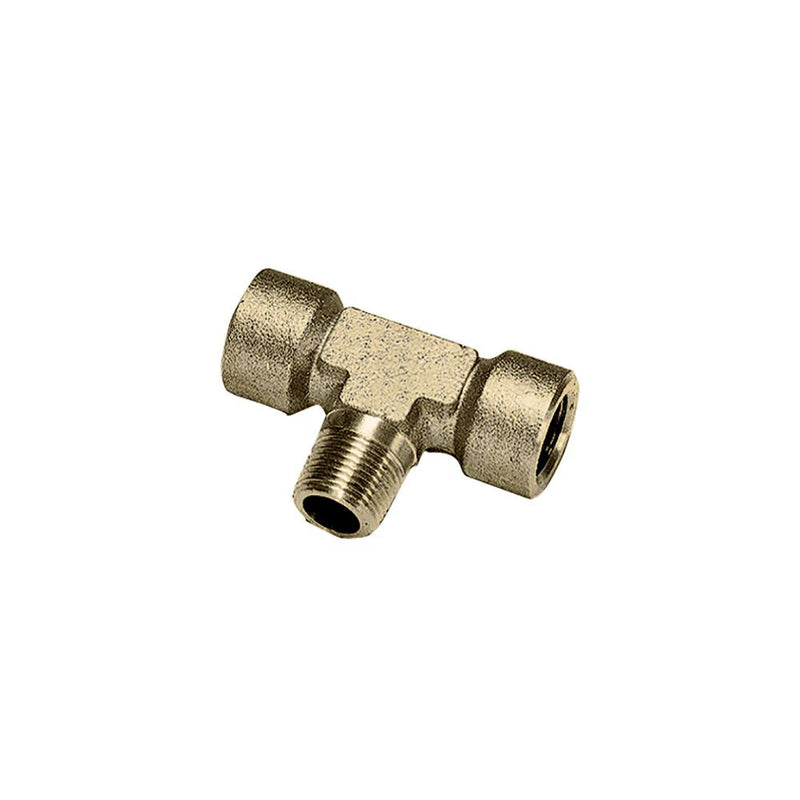

0158 13 13 by Parker | Legris Stud Fitting | 1/4" Male BSPT Thread x 1/4" Female BSPP Thread | 52 mm Length | Tee | Brass | Pack of 10

Save $99.88

$249.70

$249.70 - $249.70

$249.70

$149.82

$149.82 - $149.82

$149.82

by Parker Hannifin
Brass Adapters:0158 Stud Branch Tee, Male BSPT/Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0158 13 13 Parker \| 10 \|
Series:	0158 Series
Shape (Orientation):	Tee
Material(s):	Brass


Adapters and Manifolds:


Part Number	C1	C2	E	G	H	J	L/2	Kg
	1/8"	1/8"	7.5 mm	16.5 mm	21.5 mm	12 mm	21.5 mm	.048 mm
0158 13 13	1/4"	1/4"	11 mm	18.5 mm	26 mm	15 mm	26 mm	.072 mm
0158 17 17	3/8"	3/8"	11.5 mm	23.5 mm	30 mm	19 mm	30 mm	.120 mm
0158 21 21	1/2"	1/2"	15 mm	28 mm	36 mm	23 mm	36 mm	.205 mm
0158 27 27	3/4"	3/4"	16.5 mm	34 mm	44 mm	27 mm	44 mm	.310 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
