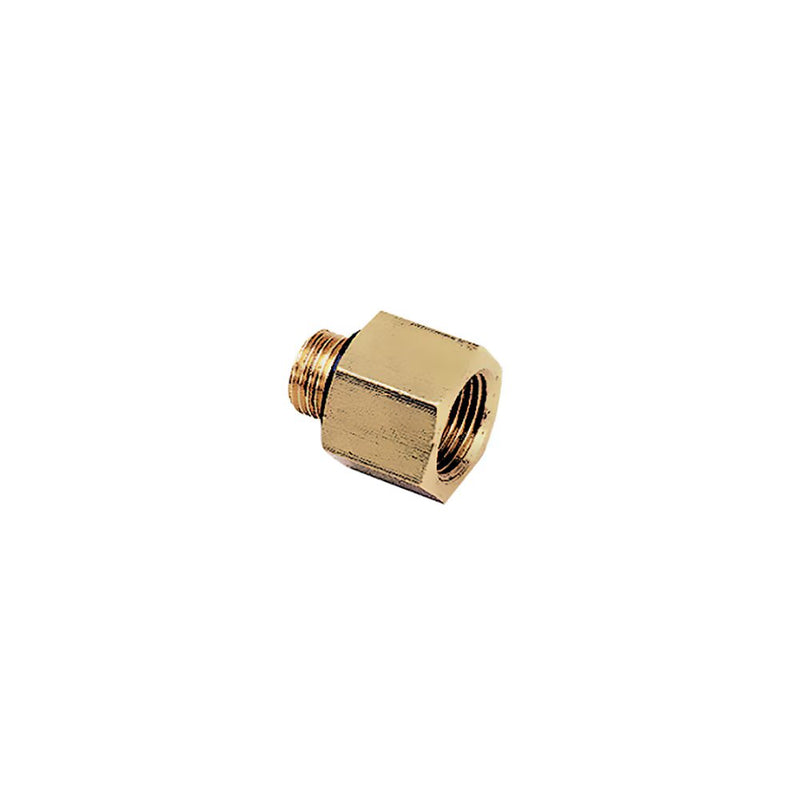

0169 13 17 by Parker | Legris Increaser Adapter | 1/4" Male BSPP Thread x 3/8" Female BSPP Thread | 22 mm Hex | 26.5 mm Length | Straight | Brass | Pack of 10

Save $42.78

$106.95

$106.95 - $106.95

$106.95

$64.17

$64.17 - $64.17

$64.17

by Parker Hannifin
Brass Adapters:0169 Increaser, Male/Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0169 13 17 Parker \| 10 \|
Series:	0169 Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	C1	C2	E1	E2	F	L	Kg
0169 10 13	1/8"	1/4"	5 mm	11 mm	17 mm	16 mm	.019 Kg
0169 10 17	1/8"	3/8"	5 mm	14 mm	22 mm	19.5 mm	.038 Kg
0169 13 17	1/4"	3/8"	7 mm	14 mm	22 mm	19.5 mm	.041 Kg
0169 13 21	1/4"	1/2"	7 mm	14.5 mm	27 mm	20.5 mm	.060 Kg
0169 17 21	3/8"	1/2"	8 mm	14.5 mm	27 mm	20.5 mm	.062 Kg
0169 17 27	3/8"	3/4"	8 mm	15.5 mm	32 mm	22 mm	.082 Kg
0169 21 27	1/2"	3/4"	9.5 mm	15.5 mm	32 mm	22.5 mm	.087 Kg

With fitted captive seal

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
