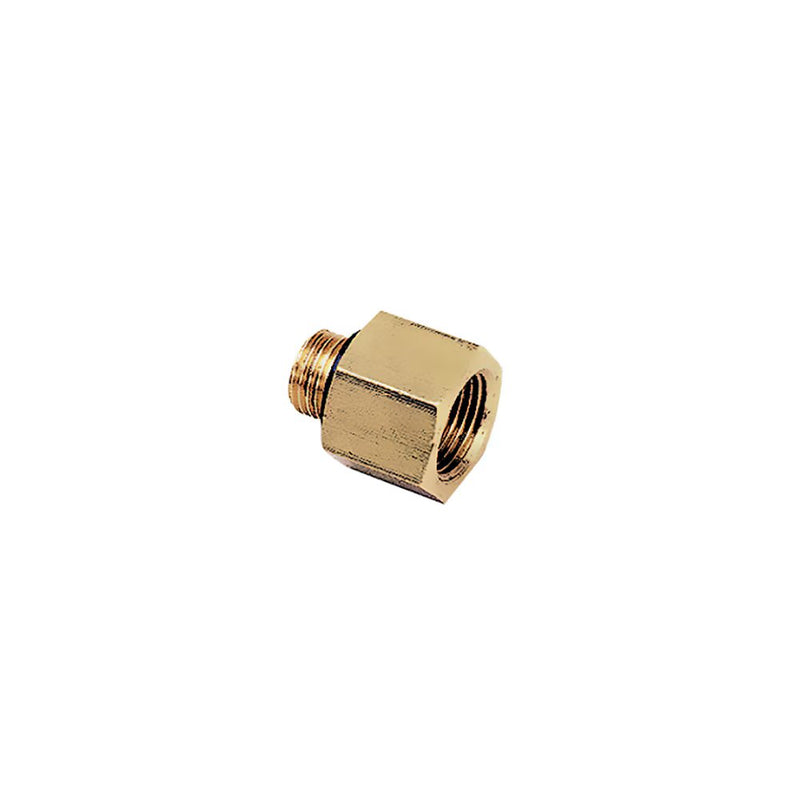

0169 17 21 by Parker | Legris Increaser Adapter | 3/8" Male BSPP Thread x 1/2" Female BSPP Thread | 27 mm Hex | 28.5 mm Length | Straight | Brass | Pack of 10

Save $18.20

$136.47

$136.47 - $136.47

$136.47

$118.27

$118.27 - $118.27

$118.27

by Parker Hannifin
Brass Adapters:0169 Increaser, Male/Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0169 17 21 Parker \| 10 \|
Series:	0169 Series
Shape (Orientation):	Straight
Material(s):	Brass


Adapters and Manifolds:


Part Number	C1	C2	E1	E2	F	L	Kg
0169 10 13	1/8"	1/4"	5 mm	11 mm	17 mm	16 mm	.019 Kg
0169 10 17	1/8"	3/8"	5 mm	14 mm	22 mm	19.5 mm	.038 Kg
0169 13 17	1/4"	3/8"	7 mm	14 mm	22 mm	19.5 mm	.041 Kg
0169 13 21	1/4"	1/2"	7 mm	14.5 mm	27 mm	20.5 mm	.060 Kg
0169 17 21	3/8"	1/2"	8 mm	14.5 mm	27 mm	20.5 mm	.062 Kg
0169 17 27	3/8"	3/4"	8 mm	15.5 mm	32 mm	22 mm	.082 Kg
0169 21 27	1/2"	3/4"	9.5 mm	15.5 mm	32 mm	22.5 mm	.087 Kg

With fitted captive seal
