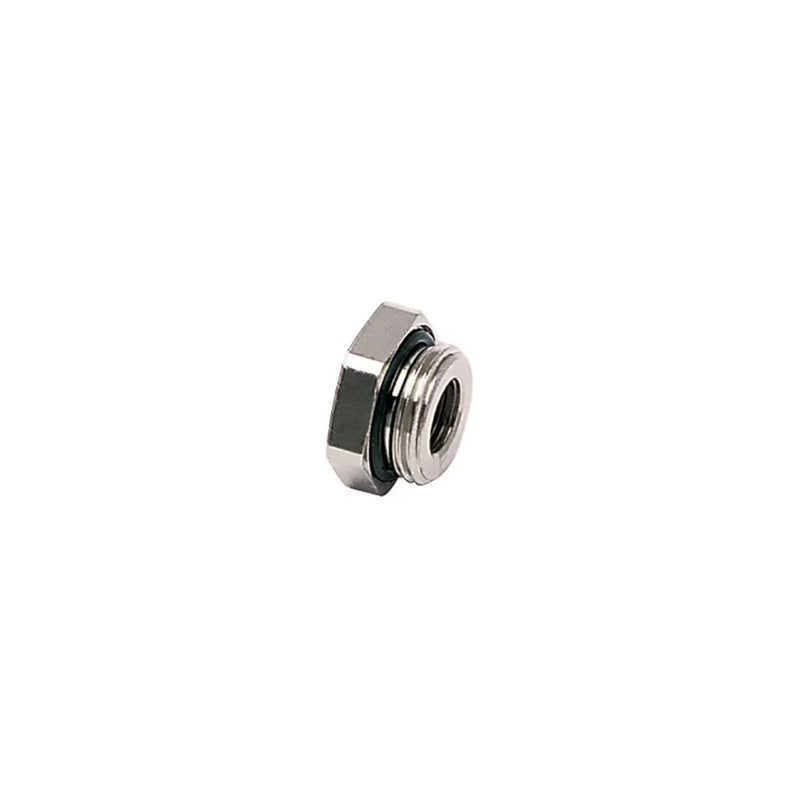

0178 17 13 by Parker | Legris Reducer | 3/8" Male BSPP Thread x 1/4" Female BSPP Thread | 20 mm Hex | 10.5 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $3.73

$40.98

$40.98 - $40.98

$40.98

$37.25

$37.25 - $37.25

$37.25

by Parker Hannifin
Nickel-Plated Brass Adapters:0178 Reducer, Male/Female BSPP and Metric Thread

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 0178 17 13 Parker \| 10 \|
Series:	0178 Series
Shape (Orientation):	Straight


Adapters and Manifolds:


Part Number	C1	C2	E	F	L	Kg
0178 55 19	M7x1	M5x0.8	5 mm	10 mm	12 mm	.005 Kg
0178 10 19	1/8"	M5x0.8	5 mm	13 mm	9 mm	.005 Kg
0178 13 10	1/4"	1/8"	5.5 mm	16 mm	9.5 mm	.006 Kg
0178 17 10	3/8"	1/8"	5.5 mm	20 mm	10.5 mm	.016 Kg
0178 17 13	3/8"	1/4"	5.5 mm	20 mm	10.5 mm	.011 Kg
0178 21 13	1/2"	1/4"	7.5 mm	24 mm	12.5 mm	.024 Kg
0178 21 17	1/2"	3/8"	7.5 mm	24 mm	12.5 mm	.016 Kg
0178 27 21	3/4"	1/2"	7.5 mm	32 mm	13.5 mm	.035 Kg

With integrated O-ring seal
