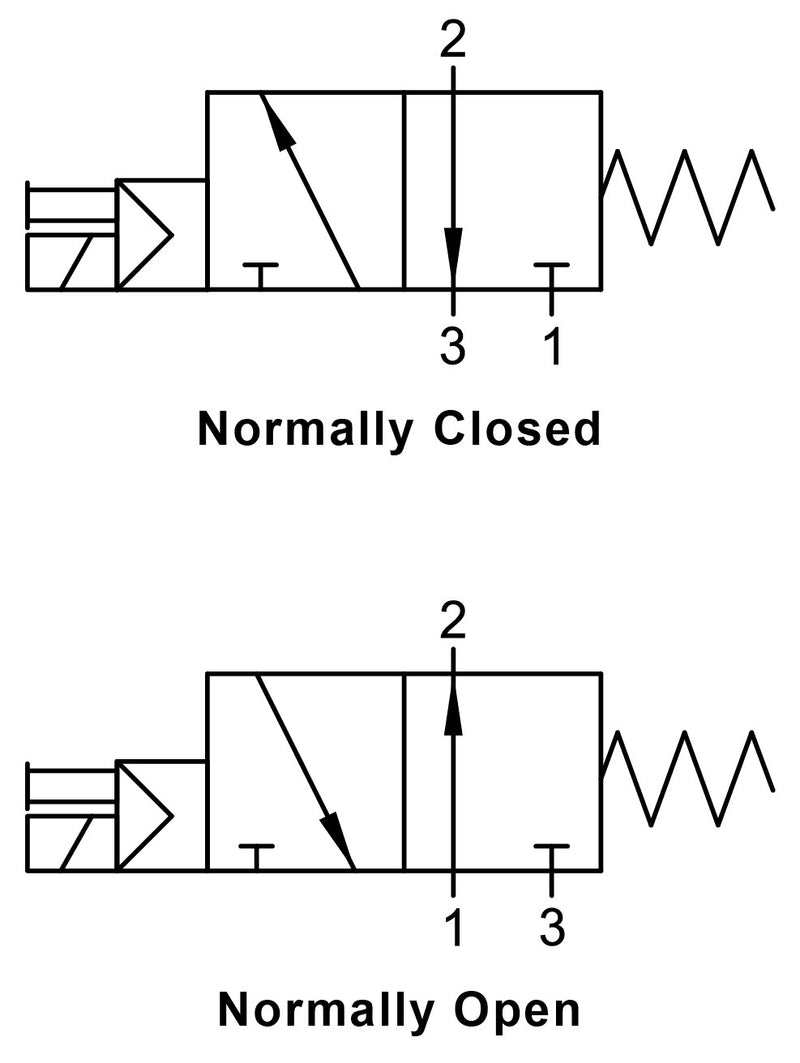

01VS03NO03N AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid Pilot | Spring Return | Female 1/4" NPTF

01VS03NO03N by AIGNEP | 01V Control Valves Series | 3 way/2 position | Normally Open | Single Solenoid Pilot | Spring Return | Female 1/4" NPTF

Save $4.49 Save $4.49
$44.89
$44.89 - $44.89
$44.89
$40.40
$40.40 - $40.40
$40.40
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 01VS03NO03N AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS03NO02N0101 01VS03NO02N0102 12V DC 3W 3/2 Monostable Spring Return Normally Open (NO) 1/8" NPTF
01VS03NO02N0201 01VS03NO02N0202 24V DC 3W 3/2 Monostable Spring Return Normally Open (NO) 1/8" NPTF
01VS03NO02N0301 01VS03NO02N0302 24V DC 2W 3/2 Monostable Spring Return Normally Open (NO) 1/8" NPTF
01VS03NO02N0401 01VS03NO02N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/8" NPTF
01VS03NO02N0501 01VS03NO02N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/8" NPTF
01VS03NO02N0601 01VS03NO02N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/8" NPTF
01VS03NO03N0101 01VS03NO03N0102 12V DC 3W 3/2 Monostable Spring Return Normally Open (NO) 1/4" NPTF
01VS03NO03N0201 01VS03NO03N0202 24V DC 3W 3/2 Monostable Spring Return Normally Open (NO) 1/4" NPTF
01VS03NO03N0301 01VS03NO03N0302 24V DC 2W 3/2 Monostable Spring Return Normally Open (NO) 1/4" NPTF
01VS03NO03N0401 01VS03NO03N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/4" NPTF
01VS03NO03N0501 01VS03NO03N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/4" NPTF
01VS03NO03N0601 01VS03NO03N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/4" NPTF
01VS03NO05N0101 01VS03NO05N0102 12V DC 3W 3/2 Monostable Spring Return Normally Open (NO) 1/2" NPTF
01VS03NO05N0201 01VS03NO05N0202 24V DC 3W 3/2 Monostable Spring Return Normally Open (NO) 1/2" NPTF
01VS03NO05N0301 01VS03NO05N0302 24V DC 2W 3/2 Monostable Spring Return Normally Open (NO) 1/2" NPTF
01VS03NO05N0401 01VS03NO05N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/2" NPTF
01VS03NO05N0501 01VS03NO05N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/2" NPTF
01VS03NO05N0601 01VS03NO05N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Open (NO) 1/2" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
