01VS050003N AIGNEP | 01V Control Valves Series | 5 port/4 way/2 position | Single Solenoid Pilot | Spring Return | Female 1/4" NPT

01VS050003N by AIGNEP | 01V Control Valves Series | 5 port/4 way/2 position | Single Solenoid Pilot | Spring Return | Female 1/4" NPT

Save $17.56

$69.44

$69.44 - $69.44

$69.44

$51.88

$51.88 - $51.88

$51.88

Specifications for Variant SKU: 01VS050003N AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s):	Plastic

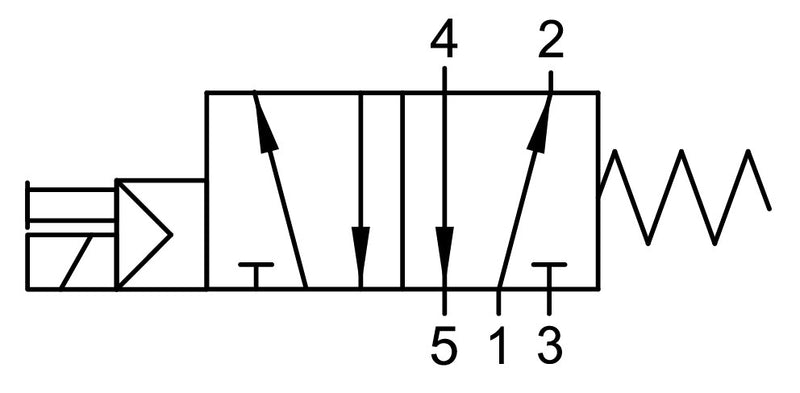

SOLENOID PILOT VALVE

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body (1/8 - 1/4 - 1/2) • Anodised aluminium body (3/8) • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Size
01VS050002N0101	01VS050002N0102	12V DC	3W	5/2	Monostable Spring Return	1/8" NPTF
01VS050002N0201	01VS050002N0202	24V DC	3W	5/2	Monostable Spring Return	1/8" NPTF
01VS050002N0301	01VS050002N0302	24V DC	2W	5/2	Monostable Spring Return	1/8" NPTF
01VS050002N0401	01VS050002N0402	24V AC	5VA	5/2	Monostable Spring Return	1/8" NPTF
01VS050002N0501	01VS050002N0502	110V AC	5VA	5/2	Monostable Spring Return	1/8" NPTF
01VS050002N0601	01VS050002N0602	220V AC	5VA	5/2	Monostable Spring Return	1/8" NPTF
01VS050003N0101	01VS050003N0102	12V DC	3W	5/2	Monostable Spring Return	1/4" NPTF
01VS050003N0201	01VS050003N0202	24V DC	3W	5/2	Monostable Spring Return	1/4" NPTF
01VS050003N0301	01VS050003N0302	24V DC	2W	5/2	Monostable Spring Return	1/4" NPTF
01VS050003N0401	01VS050003N0402	24V AC	5VA	5/2	Monostable Spring Return	1/4" NPTF
01VS050003N0501	01VS050003N0502	110V AC	5VA	5/2	Monostable Spring Return	1/4" NPTF
01VS050003N0601	01VS050003N0602	220V AC	5VA	5/2	Monostable Spring Return	1/4" NPTF
01VS050005N0101	01VS050005N0102	12V DC	3W	5/2	Monostable Spring Return	1/2" NPTF
01VS050005N0201	01VS050005N0202	24V DC	3W	5/2	Monostable Spring Return	1/2" NPTF
01VS050005N0301	01VS050005N0302	24V DC	2W	5/2	Monostable Spring Return	1/2" NPTF
01VS050005N0401	01VS050005N0402	24V AC	5VA	5/2	Monostable Spring Return	1/2" NPTF
01VS050005N0501	01VS050005N0502	110V AC	5VA	5/2	Monostable Spring Return	1/2" NPTF
01VS050005N0601	01VS050005N0602	220V AC	5VA	5/2	Monostable Spring Return	1/2" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
