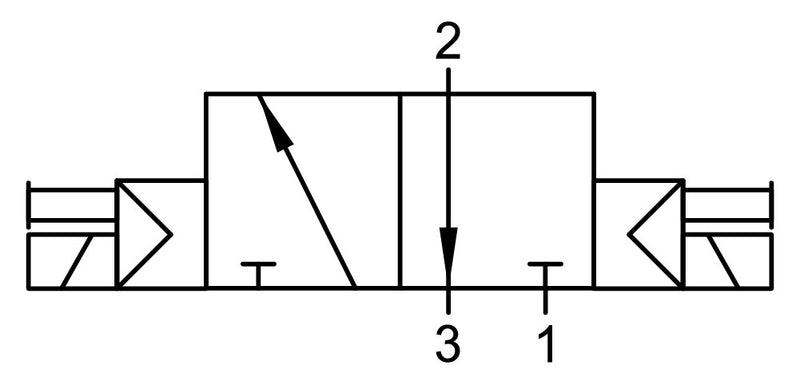

01VS130005N AIGNEP | 01V Control Valves Series | 3 way/2 position | Double Solenoid Pilot | Spring Return | Female 1/2" NPT
01VS130005N by AIGNEP | 01V Control Valves Series | 3 way/2 position | Double Solenoid Pilot | Spring Return | Female 1/2" NPT
01VS130005N AIGNEP | 01V Control Valves Series | 3 way/2 position | Double Solenoid Pilot | Spring Return | Female 1/2" NPT

01VS130005N by AIGNEP | 01V Control Valves Series | 3 way/2 position | Double Solenoid Pilot | Spring Return | Female 1/2" NPT

Save $85.26 Save $85.26
$213.15
$213.15 - $213.15
$213.15
$127.89
$127.89 - $127.89
$127.89
Specifications for Variant SKU: 01VS130005N AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Size
01VS130002N0101 01VS130002N0102 12V DC 3W 3/2 Two Stable Positions 1/8" NPTF
01VS130002N0201 01VS130002N0202 24V DC 3W 3/2 Two Stable Positions 1/8" NPTF
01VS130002N0301 01VS130002N0302 24V DC 2W 3/2 Two Stable Positions 1/8" NPTF
01VS130002N0401 01VS130002N0402 24V AC 5VA 3/2 Two Stable Positions 1/8" NPTF
01VS130002N0501 01VS130002N0502 110V AC 5VA 3/2 Two Stable Positions 1/8" NPTF
01VS130002N0601 01VS130002N0602 220V AC 5VA 3/2 Two Stable Positions 1/8" NPTF
01VS130003N0101 01VS130003N0102 12V DC 3W 3/2 Two Stable Positions 1/4" NPTF
01VS130003N0201 01VS130003N0202 24V DC 3W 3/2 Two Stable Positions 1/4" NPTF
01VS130003N0301 01VS130003N0302 24V DC 2W 3/2 Two Stable Positions 1/4" NPTF
01VS130003N0401 01VS130003N0402 24V AC 5VA 3/2 Two Stable Positions 1/4" NPTF
01VS130003N0501 01VS130003N0502 110V AC 5VA 3/2 Two Stable Positions 1/4" NPTF
01VS130003N0601 01VS130003N0602 220V AC 5VA 3/2 Two Stable Positions 1/4" NPTF
01VS130005N0101 01VS130005N0102 12V DC 3W 3/2 Two Stable Positions 1/2" NPTF
01VS130005N0201 01VS130005N0202 24V DC 3W 3/2 Two Stable Positions 1/2" NPTF
01VS1500050301 01VS130005N0302 24V DC 2W 3/2 Two Stable Positions 1/2" NPTF
01VS1500050401 01VS130005N0402 24V AC 5VA 3/2 Two Stable Positions 1/2" NPTF
01VS130005N0501 01VS130005N0502 110V AC 5VA 3/2 Two Stable Positions 1/2" NPTF
01VS130005N0601 01VS130005N0602 220V AC 5VA 3/2 Two Stable Positions 1/2" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
