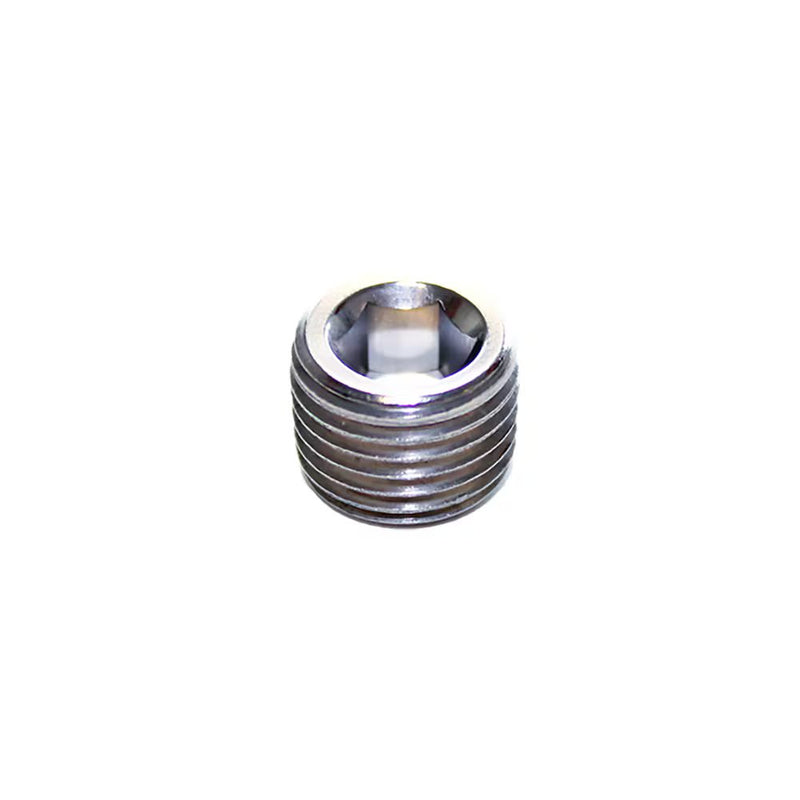

0285 34 00 by Parker | Legris Internal Hex Head Plug | 1" Male BSPT Thread | 17 mm Hex | 12 mm Length | 316L Stainless Steel

Save $49.15

$122.88

$122.88 - $122.88

$122.88

$73.73

$73.73 - $73.73

$73.73

by Parker Hannifin
Stainless Steel Plugs:0285 Internal Hexagon Head Plug, Male BSPT Thread

Specifications for Variant SKU: 0285 34 00 Parker
Series:	0285 Series
Shape (Orientation):	No Orientation
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C	E1	E2 (max)	E3 (min)	F	G	H	Kg
0285 10 00	1/8"	4 mm	3.9 mm	2.1 mm	5 mm	9.7 mm	8 mm	.003 Kg
0285 13 00	1/4"	5 mm	5.8 mm	3.2 mm	7 mm	13.1 mm	10 mm	.007 Kg
0285 17 00	3/8"	5 mm	5.8 mm	3.2 mm	8 mm	16.7 mm	10 mm	.012 Kg
0285 21 00	1/2"	5 mm	6.8 mm	3.2 mm	10 mm	21 mm	10 mm	.024 Kg
0285 27 00	3/4"	6 mm	7.8 mm	4.2 mm	12 mm	26.4 mm	12 mm	.051 Kg
0285 34 00	1"	6 mm	9.3 mm	4.7 mm	17 mm	33.2 mm	12 mm	.089 Kg

Conforms to DIN 906
Thread: EN 10226-1
