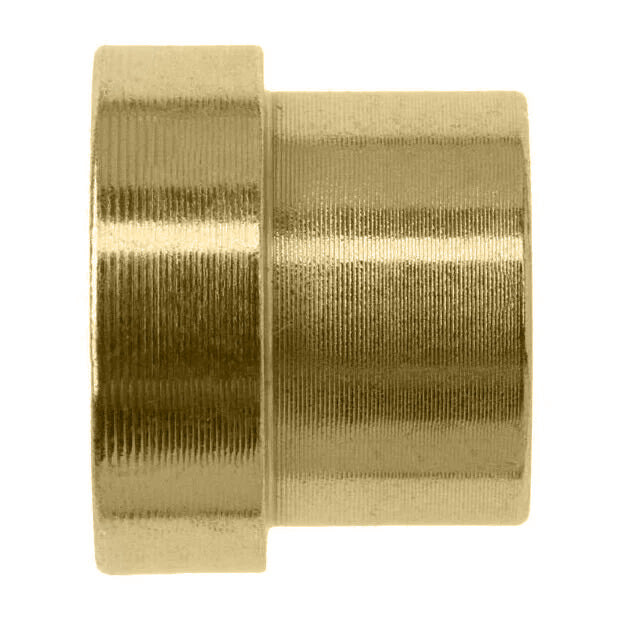

0319-16-B by Brennan Inc. | -16 JIC Tube Sleeve | Brass

0319-16-B by Brennan Inc. | -16 JIC Tube Sleeve | Brass

$11.82 - $11.82
$11.82
$12.51
$12.51 - $12.51
$12.51

Brennan Inc.
Tube Fittings & Adapters: 0319 - JIC Tube Sleeve
Specifications for Variant SKU: 0319-16-B Brennan
Ends Configuration: 1in Female JIC
Material(s): Brass
Part Number Material Tube O.D. L Length D I.D.
0319-02 Steel 1/8" 0.340" 0.130"
0319-03 Steel 3/16" 0.340" 0.193"
0319-04 Steel 1/4" 0.41" 0.255"
0319-05 Steel 5/16" 0.44" 0.318"
0319-06 Steel 3/8" 0.500" 0.380"
0319-08 Steel 1/2" 0.560" 0.505"
0319-10 Steel 5/8" 0.660" 0.631"
0319-12 Steel 3/4" 0.680" 0.756"
0319-14 Steel 7/8" 0.760" 0.881"
0319-16 Steel 1" 0.780" 1.006"
0319-20 Steel 1-1/4" 0.910" 1.260"
0319-24 Steel 1-1/2" 1.120" 1.510"
0319-32 Steel 2" 1.190" 2.014"

0319-02-B Brass 1/8" 0.340" 0.130"
0319-03-B Brass 3/16" 0.340" 0.193"
0319-04-B Brass 1/4" 0.41" 0.255"
0319-05-B Brass 5/16" 0.44" 0.318"
0319-06-B Brass 3/8" 0.500" 0.380"
0319-08-B Brass 1/2" 0.560" 0.505"
0319-10-B Brass 5/8" 0.660" 0.631"
0319-12-B Brass 3/4" 0.680" 0.756"
0319-16-B Brass 1" 0.780" 1.006"
0319-32-B Brass 2" 1.190" 2.014"

0319-02-SS Stainless Steel 1/8" 0.340" 0.130"
0319-03-SS Stainless Steel 3/16" 0.340" 0.193"
0319-04-SS Stainless Steel 1/4" 0.41" 0.255"
0319-05-SS Stainless Steel 5/16" 0.44" 0.318"
0319-06-SS Stainless Steel 3/8" 0.500" 0.380"
0319-08-SS Stainless Steel 1/2" 0.560" 0.505"
0319-10-SS Stainless Steel 5/8" 0.660" 0.631"
0319-12-SS Stainless Steel 3/4" 0.680" 0.756"
0319-16-SS Stainless Steel 1" 0.780" 1.006"
0319-20-SS Stainless Steel 1-1/4" 0.910" 1.260"
0319-24-SS Stainless Steel 1-1/2" 1.120" 1.510"
0319-32-SS Stainless Steel 2" 1.190" 2.014"
