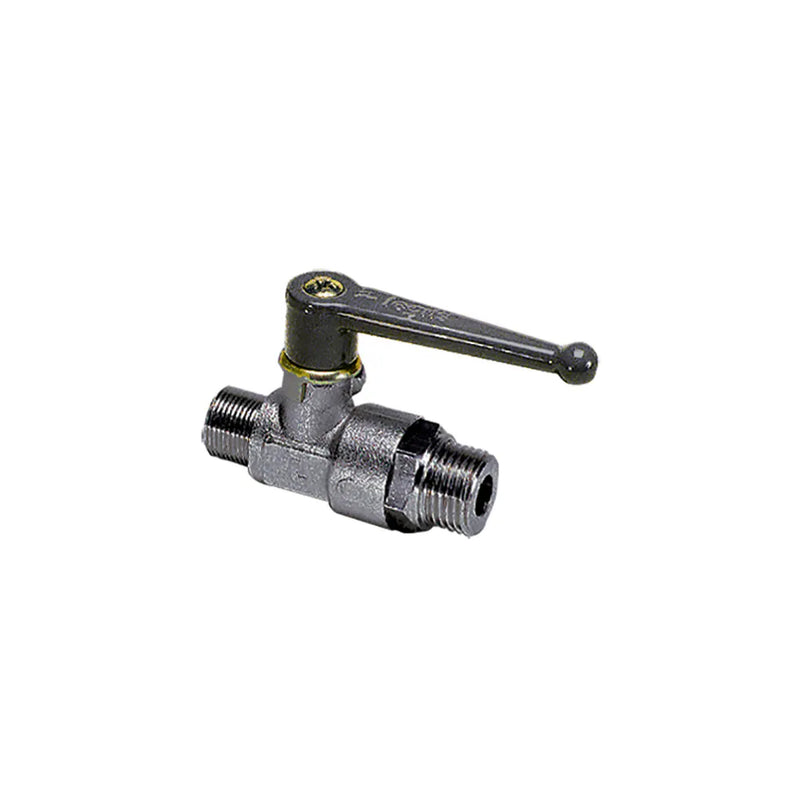

0400 07 13 by Parker | Legris In-Line Ball Valve | 1/4" Male BSPP Thread | 19 mm Hex | 60 mm Valve Length | Straight | Nickel-Plated Brass | Pack of 2

Save $16.81

$120.14

$120.14 - $120.14

$120.14

$103.33

$103.33 - $103.33

$103.33

by Parker Hannifin
Universal Series:0400 2/2 In-Line Ball Valve, Male BSPP Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 0400 07 13 Parker \| 2 \|
Series:	0400 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	H	H1	J	L	L1	M	Kg
0400 04 10	4 mm	1/8"	7 mm	14 mm	35 mm	29 mm	14 mm	45 mm	25 mm	48 mm	.094 Kg
0400 07 13	7 mm	1/4"	9 mm	19 mm	38 mm	31 mm	19 mm	60 mm	36 mm	48 mm	.166 Kg
0400 10 17	10 mm	3/8"	11 mm	24 mm	45 mm	43 mm	24 mm	70 mm	43 mm	69 mm	.252 Kg

Maximum working pressure: 40 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
