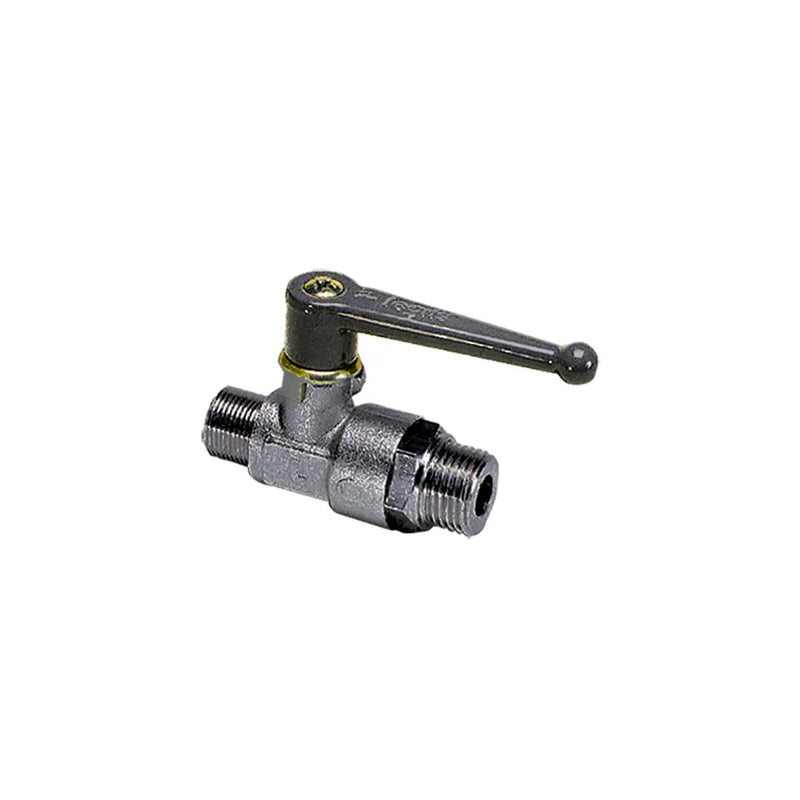

0400 10 17 by Parker | Legris In-Line Ball Valve | 3/8" Male BSPP Thread | 24 mm Hex | 70 mm Valve Length | Straight | Nickel-Plated Brass | Pack of 2

Save $2.17

$119.90

$119.90 - $119.90

$119.90

$117.73

$117.73 - $117.73

$117.73

by Parker Hannifin
Universal Series:0400 2/2 In-Line Ball Valve, Male BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0400 10 17 Parker \| 2 \|
Series:	0400 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	H	H1	J	L	L1	M	Kg
0400 04 10	4 mm	1/8"	7 mm	14 mm	35 mm	29 mm	14 mm	45 mm	25 mm	48 mm	.094 Kg
0400 07 13	7 mm	1/4"	9 mm	19 mm	38 mm	31 mm	19 mm	60 mm	36 mm	48 mm	.166 Kg
0400 10 17	10 mm	3/8"	11 mm	24 mm	45 mm	43 mm	24 mm	70 mm	43 mm	69 mm	.252 Kg

Maximum working pressure: 40 bar
