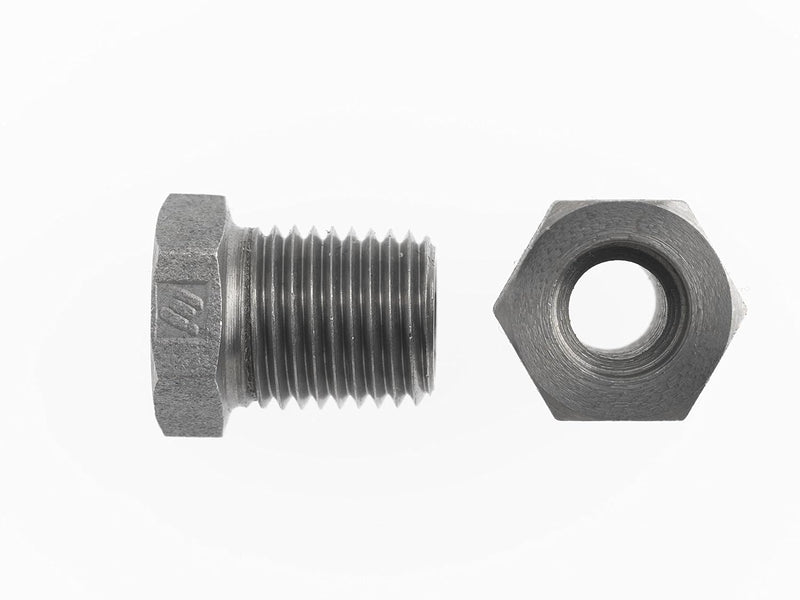

0404-20-16 by Brennan Inc. | -20 Bore x -16 Male Pipe | Straight | Steel

0404-20-16 by Brennan Inc. | -20 Bore x -16 Male Pipe | Straight | Steel

$20.91 - $20.91
$20.91
$26.53
$26.53 - $26.53
$26.53

Brennan Inc.
Tube Fittings & Adapters | 0404 - Bore x Male Pipe Straight
Specifications for Variant SKU: 0404-20-16 Brennan
Shape (Orientation): Straight
Material(s): Steel
Part Number Material Tube OD A1 Bore A2 NPTF D Drill L Length T Width C Hex
0404-04-02 Steel 1/4" 0.256 1/8-27" 0.172" 0.562" 0.180" 0.500"
0404-04-04 Steel 1/4" 0.256 1/4-18" 0.172" 0.812" 0.250" 0.625"
0404-06-04 Steel 3/8" 0.381 1/4-18" 0.281" 0.812" 0.250" 0.625"
0404-06-06 Steel 3/8" 0.379 3/8-18" 0.281" 0.850" 0.250" 0.750"
0404-08-06 Steel 1/2" 0.506 3/8-18" 0.406" 0.850" 0.280" 0.812"
0404-08-08 Steel 1/2" 0.506 1/2-14" 0.406" 1.100" 0.280" 0.875"
0404-10-06 Steel 5/8" 0.631 3/8-18" 0.406" 0.843" 0.28" 0.812"
0404-10-08 Steel 5/8" 0.631 1/2-14" 0.531" 1.078" 0.33" 0.937"
0404-12-08 Steel 3/4" 0.757 1/2-14" 0.531" 1.100" 0.350" 0.937"
0404-12-12 Steel 3/4" 0.757 3/4-14" 0.609" 1.100" 0.340" 1.125"
0404-16-12 Steel 1" 1.007 3/4-14" 0.719" 1.260" 0.500" 1.250"
0404-16-16 Steel 1" 1.007 1-11-1/2" 0.938" 1.312" 0.38" 1.375"
0404-20-16 Steel 1-1/4" 1.258 1-11-1/2" 0.938" 1.376" 0.44" 1.688"
0404-20-20 Steel 1-1/4" 1.258 1-1/4-11-1/2" 1.078" 1.406" 0.44" 1.688"
0404-24-16 Steel 1-1/2" 1.508 1-11-1/2" 0.938" 1.375" 0.50" 1.750"
0404-24-24 Steel 1-1/2" 1.508 1-1/2-11-1/2" 1.312" 1.500" 0.50" 2.000"
0404-32-32 Steel 2" 2.008 2-11-1/2" 1.938" 1.781" 0.75" 2.625"

0404-12-12-SS Stainless Steel 3/4" 0.757 3/4-14" 0.609" 1.100" 0.340" 1.125"
0404-24-24-SS Stainless Steel 1-1/2" 1.508 1-1/2-11-1/2" 1.312" 1.500" 0.50" 2.000"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
