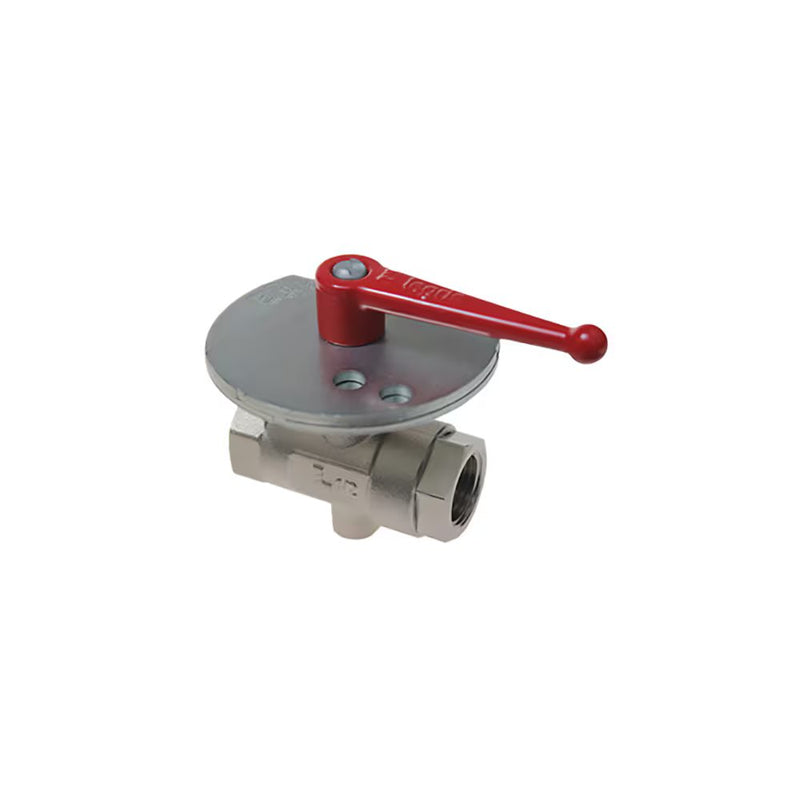

0436 23 34 by Parker | Legris In-Line 3-Point Lockable Ball Valve w/ Exhaust Port | 1/4" Female BSPP Thread x 1" Female BSPP Thread | 41 mm Hex (F) | 46 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

Save $10.32

$567.73

$567.73 - $567.73

$567.73

$557.41

$557.41 - $557.41

$557.41

by Parker Hannifin
Universal Series:0436 3/2 In-Line 3-Point Lockable Ball Valve with Threaded Exhaust Port, Female BSPP and Metric Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0436 23 34 Parker \| 2 \|
Series:	0436 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C1	C	E	F	F1	H	H1	L	L1	M	Kg
0436 18 27	18 mm	1/4"	3/4"	16.5 mm	32 mm	38 mm	69.5 mm	33 mm	80 mm	39.5 mm	108 mm	.850 Kg
0436 23 34	23 mm	1/4"	1"	19 mm	41 mm	46 mm	73.5 mm	47.5 mm	94.5 mm	47.5 mm	108.5 mm	1.215 Kg

Maximum working pressure: 40 bar
Handle is not removable.
Fixed and mobile plates: zinc-plated steel
