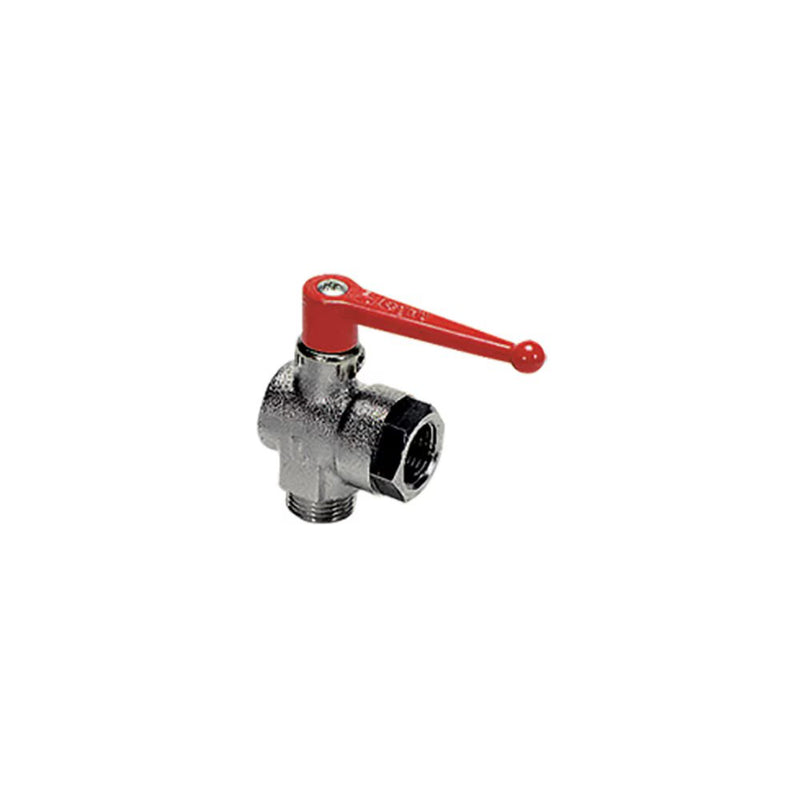

0461 18 27 by Parker | Legris Ball Valve w/ Vent | 3/4" Male BSPP Thread x 3/4" Female BSPP Thread | 38 mm Hex | 90° Elbow | Nickel-Plated Brass

0461 18 27 by Parker | Legris Ball Valve w/ Vent | 3/4" Male BSPP Thread x 3/4" Female BSPP Thread | 38 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $2.25 Save $2.25
$123.89
$123.89 - $123.89
$123.89
$121.64
$121.64 - $121.64
$121.64

by Parker Hannifin
Universal Series:0461 3/2 Right-Angled Ball Valve with Vent, Male/Female BSPP Thread
Specifications for Variant SKU: 0461 18 27 Parker
Series: 0461 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum up to 40 bar, depending on the model
  • Working Temperature: -20°C to +80°C
    up to -40°C with no handle operation
Advantages:
  • Automatic seal wear compensation
  • Vacuum resistance
  • Ease of operation
  • Short, repositionable and exchangeable handles
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Nickel-plated brass
  • Stem: NBR
  • Stem seal: NBR
  • Seat seal: Graphite-impregnated polyamide
  • Ball: Nickel-Plated Polished Brass
  • Locking Nut: Nickel-plated brass
  • Wear-compensation seal: NBR
  • Lever: Treated Zamak
  • Lever fixing screw: Zinc-Plated Steel
Part Number Diameter Nominal (DN) C E E1 F H H1 H2 J L L1 M Kg
0461 06 10 6 mm 1/8" 8 mm 7 mm 19 mm 38 mm 31 mm 20 mm 22 mm 37 mm 27 mm 48 mm .182 Kg
0461 06 13 6 mm 1/4" 12 mm 9 mm 19 mm 38 mm 31 mm 24 mm 22 mm 38 mm 28 mm 48 mm .186 Kg
0461 09 17 9 mm 3/8" 12 mm 11 mm 24 mm 45 mm 43 mm 27 mm 25 mm 46 mm 31 mm 69 mm .257 Kg
0461 12 21 12 mm 1/2" 15 mm 12 mm 27 mm 47 mm 44 mm 33 mm 29 mm 49 mm 34 mm 69 mm .304 Kg
0461 18 27 18 mm 3/4" 16.5 mm 12 mm 38 mm 59 mm 51 mm 40 mm 39 mm 60 mm 39 mm 108 mm .648 Kg

Maximum working pressure: 20 bar
