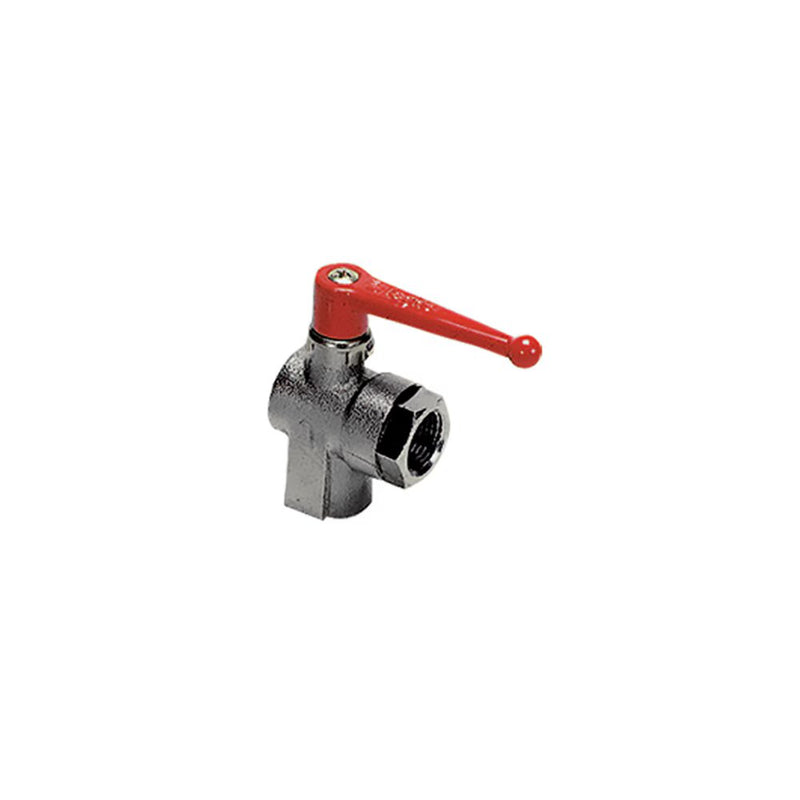

0462 23 34 by Parker | Legris Ball Valve w/ Vent | 1" Female BSPP Thread | 46 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $3.71

$203.91

$203.91 - $203.91

$203.91

$200.20

$200.20 - $200.20

$200.20

by Parker Hannifin
Universal Series:0462 3/2 Right-Angled Ball Valve with Vent, Female BSPP Thread

Quantity

Specifications for Variant SKU: 0462 23 34 Parker
Series:	0462 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	H	H1	H2	J	L	L1	M	Kg
0462 06 10	6 mm	1/8"	8 mm	19 mm	38 mm	31 mm	20 mm	22 mm	37 mm	27 mm	48 mm	.192 Kg
0462 06 13	6 mm	1/4"	12 mm	19 mm	38 mm	31 mm	24 mm	22 mm	38 mm	28 mm	48 mm	.185 Kg
0462 09 17	9 mm	3/8"	12 mm	24 mm	45 mm	43 mm	27 mm	25 mm	46 mm	31 mm	69 mm	.261 Kg
0462 12 21	12 mm	1/2"	15 mm	27 mm	47 mm	44 mm	33 mm	29 mm	49 mm	34 mm	69 mm	.311 Kg
0462 23 34	23 mm	1"	19 mm	46 mm	63 mm	55 mm	47 mm	48 mm	72 mm	47 mm	108 mm	1.066 Kg

Maximum working pressure: 20 bar
