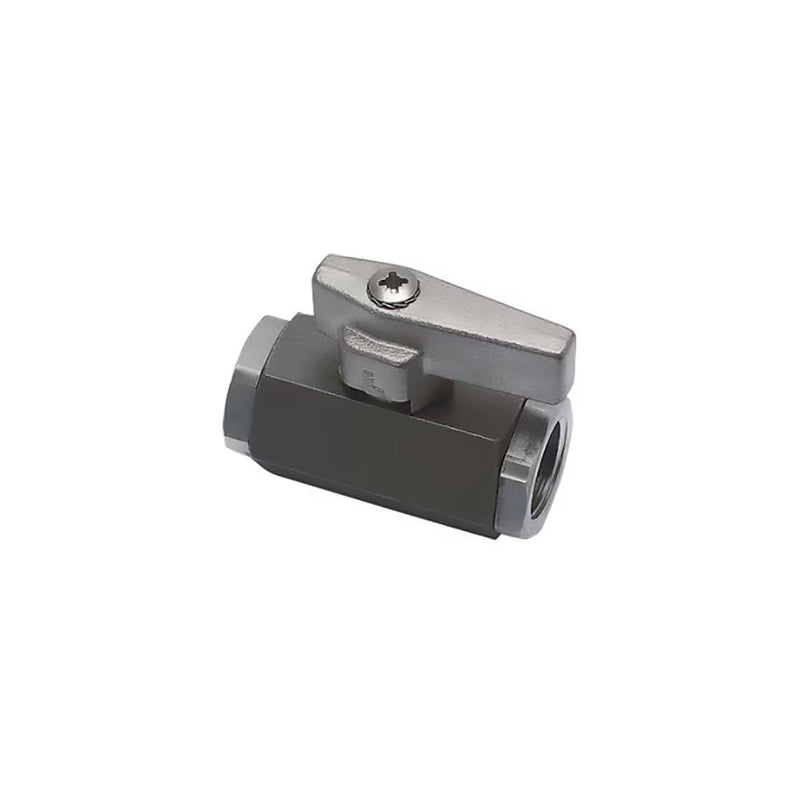

0465 07 17 by Parker | Legris In-Line Light Series Ball Valve | 3/8" Female BSPP Thread | 24 mm Hex | 27 mm Hex | 55 mm Length | Straight | 303 Stainless Steel | Pack of 2

Save $9.48

$521.99

$521.99 - $521.99

$521.99

$512.51

$512.51 - $512.51

$512.51

by Parker Hannifin
Stainless Steel Series:0465 2/2 In-Line Light Series Ball Valve, Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0465 07 17 Parker \| 2 \|
Series:	Light Series
Shape (Orientation):	Straight
Material(s):	303 Stainless Steel, Stainless Steel
Seal Material(s):	PTFE
Special Properties:	Environmental Resistance, Pressure Resistance, Temperature Resistance

Technical Characteristics:	Compatible Fluids: All fluids Working Pressure: 0 to 20 bar Working Temperature: -20°C to +120°C
Advantages:	Chemical compatibility High temperature operation: up to +150°C 3 straight versions: - Compact type cannot be disassembled - 3-piece can be disassembled - Light series for more compactness
Regulations:	PED RoHS REACH
Component Materials:	Body: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465) Stem seal: PTFE Seat seals: PTFE Lever: Nickel-plated brass (0465) or 430 stainless steel (4832-4812-4810) Stem: 316L Stainless Steel (4832-4812-4810) or 303 Stainless Steel (0465) Wear-compensation seal: 2 PTFE seals (0465) 1 FKM seal (4832-4812-4810) Locking nut and Locking screw: Zinc plated steel Ball: 316L stainless steel (4832-4812-4810) or 303 stainless steel (0465)


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	L	Kg
0465 04 13	4 mm	1/4"	13 mm	19 mm	24 mm	36 mm	50 mm	.226 Kg
0465 07 17	7 mm	3/8"	13 mm	24 mm	27 mm	39 mm	55 mm	.278 Kg

Silicone-free
Threads conformed to ISO 228/1-G

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
