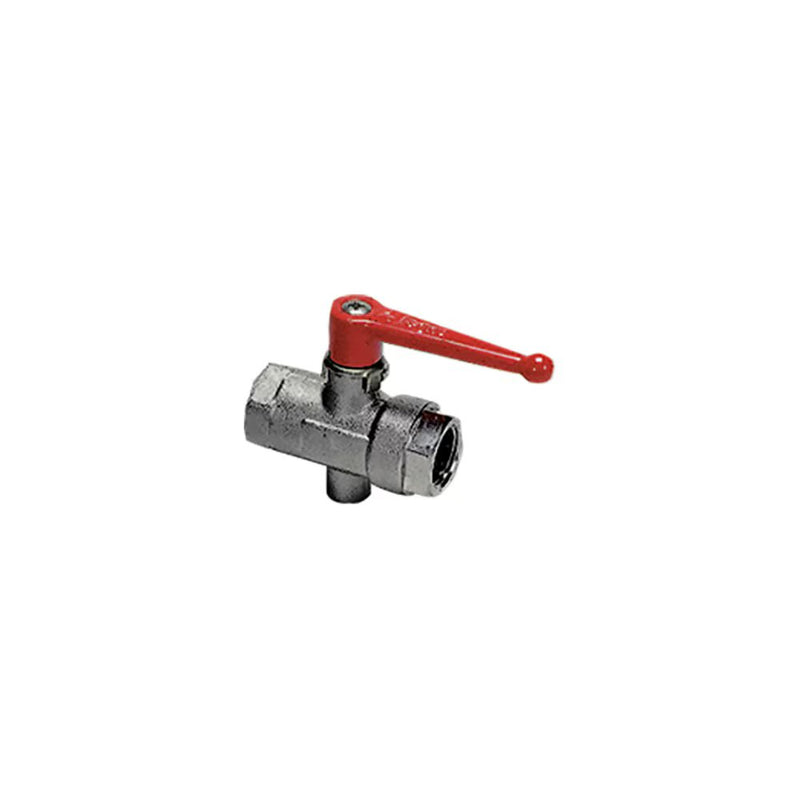

0489 13 21 by Parker | Legris In-Line Exhaust Port Ball Valve | 1/8" Female BSPP Thread x 1/2" Female BSPP Thread | 27 mm Hex (F) | 27 mm Hex (F1) | Tee | Nickel-Plated Brass | Pack of 2

Save $84.85

$212.13

$212.13 - $212.13

$212.13

$127.28

$127.28 - $127.28

$127.28

by Parker Hannifin
Universal Series:0489 3/2 In-Line Threaded Exhaust Port Ball Valve, Female BSPP and Metric Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 0489 13 21 Parker \| 2 \|
Series:	0489 Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C1	C	E	F	F1	H	H1	H2	L	L1	M	T	Kg
0489 07 13	7 mm	M5x0.8	1/4"	12 mm	24 mm	24 mm	46 mm	43 mm	17 mm	59 mm	31 mm	69 mm	2 mm	.270 Kg
0489 10 17	10 mm	M5x0.8	3/8"	12 mm	24 mm	24 mm	46 mm	43 mm	17 mm	59 mm	31 mm	69 mm	2 mm	.243 Kg
0489 13 21	13 mm	1/8"	1/2"	15 mm	27 mm	27 mm	47 mm	44 mm	24 mm	67 mm	34 mm	69 mm	2 mm	.310 Kg
0489 18 27	18 mm	1/4"	3/4"	16.5 mm	32 mm	38 mm	63 mm	54 mm	33 mm	80 mm	39 mm	108 mm	2.5 mm	.670 Kg
0489 23 34	23 mm	1/4"	1"	19 mm	41 mm	46 mm	67 mm	57 mm	37 mm	94 mm	47 mm	108 mm	3 mm	1.050 Kg

Maximum working pressure: 40 bar
